CRMS-SRIW/9040

CRMS-SRIW/9040 - in-wall reference surround

  • Reference-quality high-resolution audio ready immersive sound system
  • Unique voicing match with Alcons pro-ribbon loaded systems
  • 1:1 non-compressed sound reproduction, with up to 90% less distortion
  • RBN401 pro-ribbon HF driver with exceptional intelligibility and dynamic output
  • SIS™ pre-wired for very high damping and further reduced distortion (with ALC)
  • Patented horizontal dispersion for very wide imaging

Product description

The CRMS-SRIW is a 2-way passive-filtered full range loudspeaker, designed to meet all requirements of current and future immersive sound formats.

Featuring the patented Alcons pro-ribbon driver technology, the CRMS-SRIW combines an exceptional clarity and intelligibility with an unusually high dynamic range, offering the most realistic sound reproduction possible.

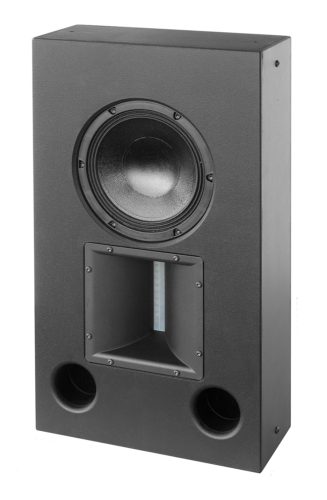

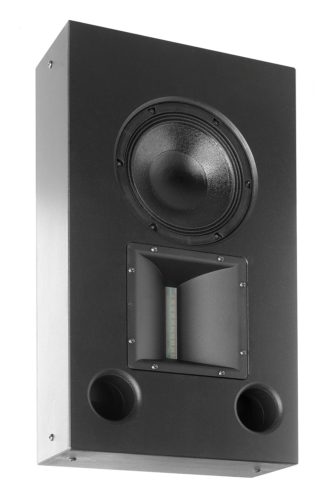

The CRMS-SRIW/9040 system consists of one RBN401 pro-ribbon driver for HF and a vented 8” mid-bass for LF reproduction; the HF section has an 800 W peak power input, enabling a 1:15 dynamic range with up to 90% less distortion from 1 kHz to beyond 20 kHz.

The RBN401’s patented 90-degrees dispersion up to the highest frequencies not only offers a very wide and coherent direct-field coverage, it also guarantees a consistent reflected diffuse-field. In combination with the revolvable RBN waveguide, this dramatically enhances the depth and width stereo imaging.

Due to the “compression-less” principle of the pro-ribbon transducer, the system has a linear response at any SPL.

The shallow enclosure of 150mm/5.9-in provides for easy, low profile in- or on-wall mounting in typical “2-by-6” wall constructions. An optional grill and ACO™ color option is available as well.

For full system performance, the CRMS-SRIW needs to be driven by an ALC controller-amplifier, delivering maximum sound quality with increased headroom and utmost operation reliability. The system is available in 8 ohms and 4 ohms version, for maximum amplifier efficiency in individually-amplified immersive surround systems.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the CRMS-SRIW and ALC, significantly increasing response accuracy, regardless of cable length and system impedance, with tight and accurate mid and bass response as result.

The CRMS-SRIW/9040 is developed as a compact reference main / screen system – or as larger surround system in immersive sound-for-picture applications. It can also be used as full-range sound system in any installed audio application, where a very high quality sound reproduction with inconspicuous mounting is required.

The CRMS-SRIW system is available with 90° x 40° (CRMS-SRIW/9040) or 90° x 90° (CRMS-SRIW/9090) dispersion pattern.

Dimensional drawing

Technical specifications

Frequency response 74 Hz - 20.000 Hz (+/- 3 dB)
58 Hz (+/- 10 dB)
Sensitivity nominal 102 dB (8 ohms, 200 Hz - 10 kHz)
99 dB (4 ohms, 200 Hz - 10 kHz)
Nominal impedance 8 ohms or 4 ohms
Recommended drive Sentinel3 min., max. 3 pcs (8 ohms) / 1 pce
(4 ohms) per channel (2.7 ohms / 4 ohms)
Nominal SPL peak 127 dB (Sentinel3 8 ohms 200 Hz-10 kHz)
127 dB (Sentinel3 4 ohms 200 Hz-10 kHz)
133 dB (Sentinel10 8 ohms 200 Hz-10 kHz)
132 dB (Sentinel10 4 ohms 200 Hz-10 kHz)
Dispersion H x V 90° x 40° or 40° x 90° (40° line-source)

Physical specifications

System 2-way, full-range
Filtering passive
Driver LF 1x AMB8 8”, vented
Driver HF 1x RBN401 4” pro-ribbon driver

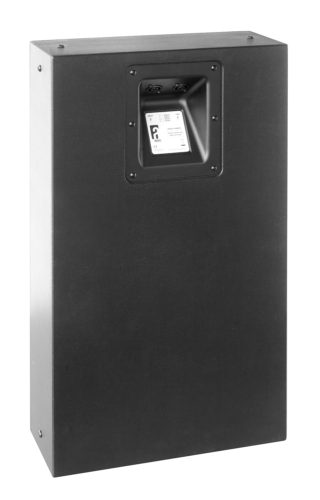

Connectors 2x Speakon NL4 input/link
Physical dimensions  mm                 inches
Height 609                  24.0
Width 350                   13.8
Depth 150                     5.9
Weight (approx.) 12,6 kg            27.8 lb
Warranty 6 years limited
