QB363

QB363 - modular low-frequency array column

  • Tight triple 12" driver arrangement for optimal array coupling
  • All Neodymium drivers for excellent performance-to- weight ratio
  • Clever bracing brings lightweight yet rigid Birch cabinet construction
  • Double baffle board with flush mount transducers
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Dedicated optimisation and protection in combination with ALC
  • Durotect™ scratch-resistant coating

Product description

The QB363 is a modular front-loaded arrayable bass system, for permanent applications. Featuring triple 12” long excursion woofers with Neodymium magnet structures, the QB363 delivers high quality, tight and accurate bass response from a very compact and weight efficient package. With a face-print exactly the same as the QR36/QM36, the QB363 can be stacked in multiples to form bass arrays.

The SIS pre-wiring ensures complete cable/ connector compensation between the QB363 and ALC. Typical applications for the QB363 include bass extension of main QR sound systems, used in multiples depending on the application and low frequency output and control.

For full system performance, the QB363 is to be used in combination with an ALC amplified loudspeaker controller. Driven by the ALC, the QB363 delivers maximum sound quality and output power with dedicated and inaudible (power and excursion!) protection.

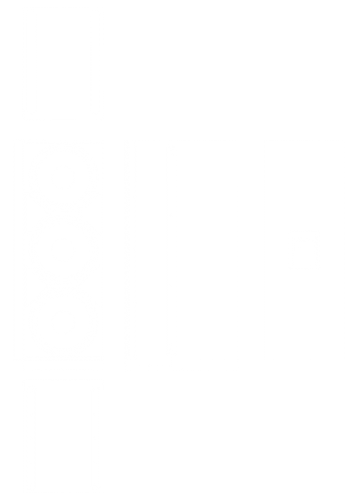

Dimensional drawing

Technical specifications

Frequency Response
+/- 3 dB   45 Hz-250 Hz
+/- 10 dB   38 Hz -
Sensitivity (SPL 1W/M)   99 dB
Nominal Impedance   5.3 ohms
Maximum RMS power   1200 W
Maximum peak power   3600 W
SPL program/peak   130/135 dB
Dispersion H x V   omni

Physical specifications

System   subwoofer, front loaded
Drivers LF   3 x AW12.3ND-16 12" woofer,
multiple-vented
Cross-over frequency HP   35 Hz. recommended
Connectors   2 x Speakon NL4 input
Physical dimensions   mm              inches
Height   1006             39.6
Width   367               14.4
Depth   515               20.2
Weight (approx.)   35 kg            (77 lb)
Warranty   6 years limited
