TS7 - Ultra-compact monitor

  • 1” soft-dome tweeter on a small wave-guide for increased HiFi quality output
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Dedicated protection in combination with ALC
  • Omnimount™ mounting points, bracket (option)
  • Passive filtering for easy operation and economical powering

Product description

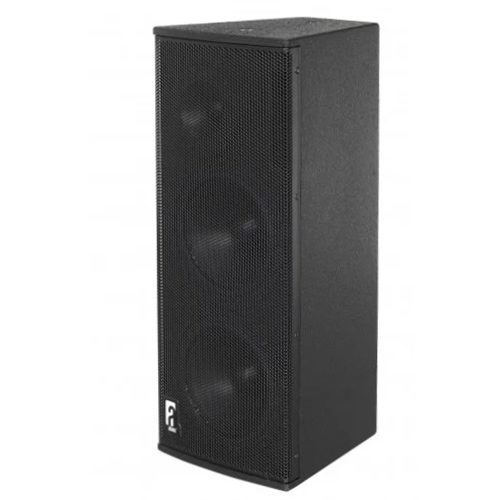

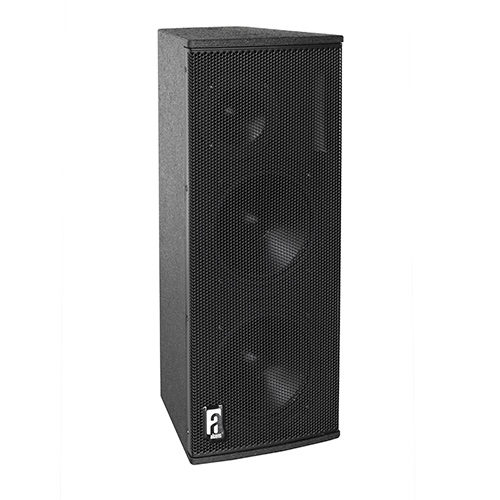

The TS7 is a 2-way ultra-compact versatile loudspeaker, for both permanent and limited portable applications. Featuring a 1” soft-dome tweeter with double 6.5” high quality woofers, the TS7 delivers exceptional performance from a very compact and efficient package. The system includes dedicated filtering and system equalizing.

The SIS pre-wiring ensures complete cable/connector compensation between the TS7 and ALC. The enclosure design provides for low profile mounting (ceiling, wall). Typical applications for the TS7 include nearfield main system for small theatre, A/V, PA or fill/delay speaker in larger systems. In applications where extended bass response is required, the TS7 can be combined with a bass or sub bass system.

For full system performance, TS7 can be used in combination with an ALC amplified loudspeaker controller. Driven by the ALC, the TS7 delivers maximum sound quality and output power with inaudible (power and excursion) protection.

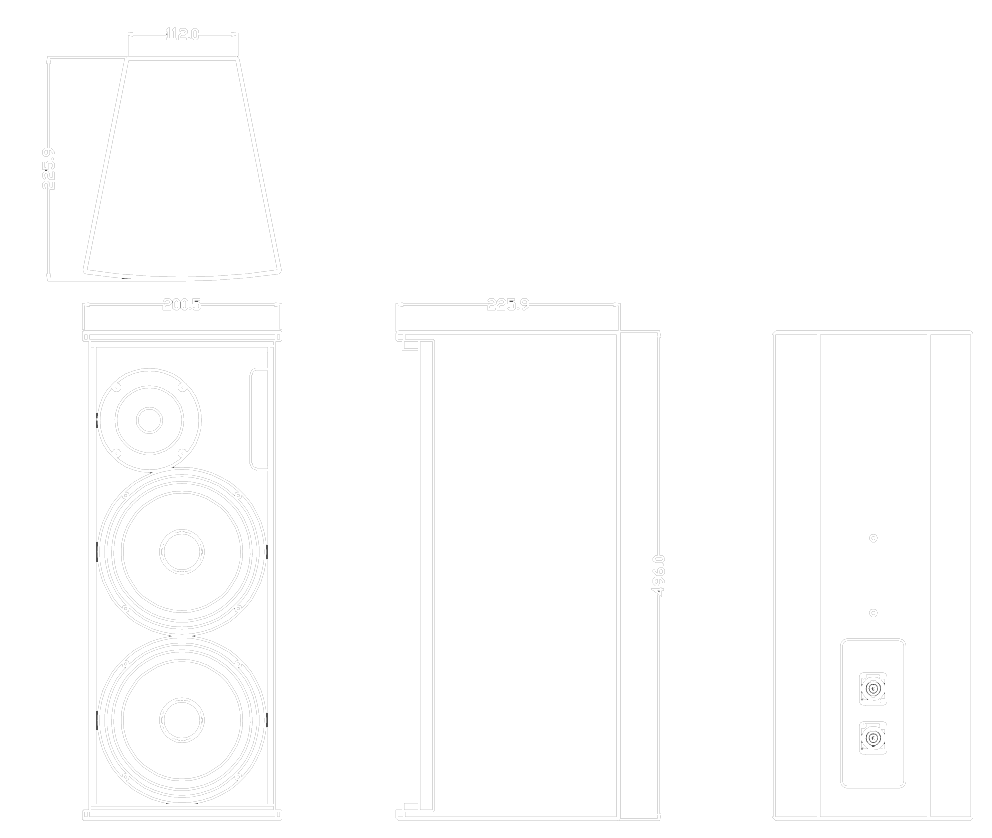

Dimensional drawing

Technical specifications

Frequency Response
+/- 3 dB   66 Hz - 20.000 Hz
+/- 10 dB   47 Hz.
Sensitivity (SPL 1W/M)   92 dB
Nominal Impedance   8 Ohm
Maximum RMS power   200 Watt
Maximum peak power   800 Watt
SPL program/peak   115/121 dB
Dispersion H x V   90° x 40°
Polarity   positive voltage on
    terminal 1+ of Speakon
    gives forward cone
    motion

Physical specifications

System 2-way, full-range
Filtering   passive
Drivers LF   2 x AMB65 6,5”
    vented
Drivers HF   1 x AST1”
    soft-dome tweeter
Cross-over frequency   3000 Hz.

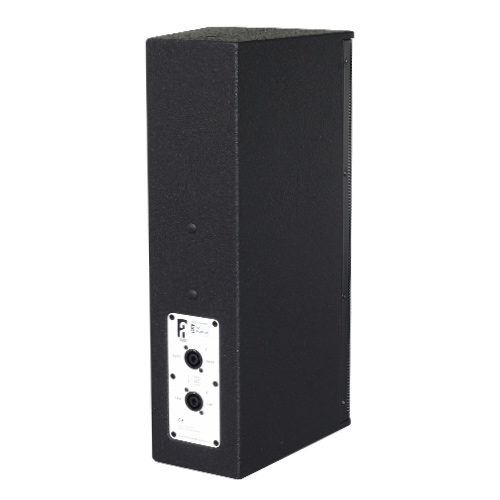

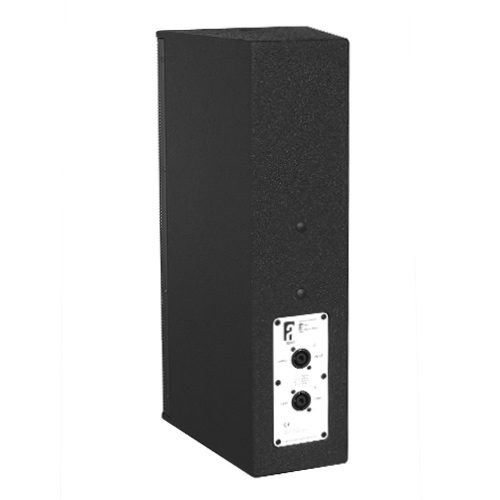

Connectors   2 x Speakon NL4 input
Physical dimensions   mm        inches
Height   496,0     19,5
Width   200,5     7,9
Depth   225,9     8,9
Netto Weight   6,6 kg    (14,6 lb)
Warranty   6 years limited
