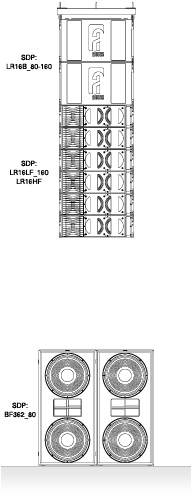

GRD16 flying/stacking grid
LR16B 2x 15” line-array bass
ALC4 2x 2kW controller-amp
DDP Digital Drive Processor
LSC154 NL4 cable, 15meter
(cross-over LR16B 80Hz - 160Hz)
LR16 2-way active 2x 8”+RBN601
ALC4 2x 2kW controller-amp
DDP Digital Drive Processor
LSC158 NL8 cable, 15meter
LSC0068 NL8 cable, 60centimeter
(cross-over LR16 160Hz - 1.2kHz.)
BF362 2x 18” subwoofer
ALC6 2x 3kW controller-amp
DDP Digital Drive Processor
LSC154 NL4 cable, 15meter
cross-over BF362 30Hz - 80Hz |
1x
2x
1x (2 channels, 4 ohms ea.)
1x
2x (or 1x, running on 2 ohms)
6x
2x (4 channels, 2.7 ohms ea.)
2x
2x
4x
2x
1x (2 channels, 4 ohms ea.)
1x
2x |
|
|
|
|
|
|
|
|
|

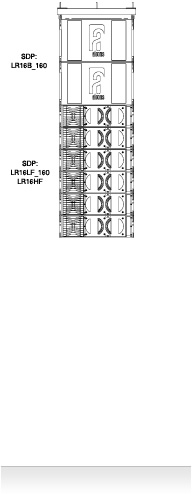

GRD16 flying/stacking grid
LR16B 2x 15” line-array bass
ALC4 2x 2kW controller-amp
DDP Digital Drive Processor
LSC154 NL4 cable, 15meter
(cross-over LR16B 40z - 160Hz)
LR16 2-way active 2x 8”+RBN601
ALC4 2x 2kW controller-amp
DDP Digital Drive Processor
LSC158 NL8 cable, 15meter
LSC0068 NL8 cable, 60centimeter
(cross-over LR16 160Hz - 1.2kHz.) |
1x
2x
1x (2 channels, 4 ohms ea.)
1x
2x (or 1x, running on 2 ohms)
6x
2x (4 channels, 2.7 ohms ea.)
2x
2x
4x
|
|
|
|
|
|
|
|
|
|

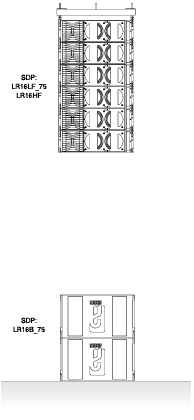

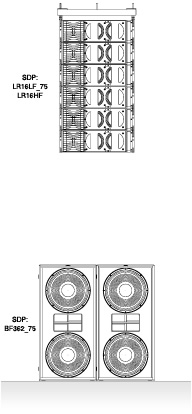

GRD16 flying/stacking grid
LR16 2-way active 2x 8”+RBN601
ALC4 2x 2kW controller-amp
DDP Digital Drive Processor
LSC158 NL8 cable, 15meter
LSC0068 NL8 cable, 60centimeter
(cross-over LR16 75Hz - 1.2kHz.)
BF362 2x 18” subwoofer
ALC6 2x 3kW controller-amp
DDP Digital Drive Processor
LSC154 NL4 cable, 15meter
(cross-over BF362 30Hz - 75Hz) |
1x
6x
2x (4 channels, 2.7 ohms ea.)
2x
2x
4x
2x
1x (2 channels, 4 ohms ea.)
1x
2x |
|
|
|
|
|
|
|
|
|
GRD16 flying/stacking grid
LR16 2-way active 2x 8”+RBN601
ALC4 2x 2kW controller-amp
DDP Digital Drive Processor
LSC158 NL8 cable, 15meter
LSC0068 NL8 cable, 60centimeter
(cross-over LR16 75Hz - 1.2kHz.)
LR16B 2x 15” line-array bass
ALC4 2x 2kW controller-amp
DDP Digital Drive Processor
LSC154 NL4 cable, 15meter
(cross-over LR16B 40z - 75Hz) |
1x
6x
2x (4 channels, 2.7 ohms ea.)
2x
2x
4x
2x
1x (2 channels, 4 ohms ea.)
1x
2x (or 1x, running on 2 ohms) |
|
|
|
|
|
|
|
|
|

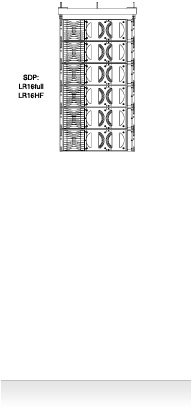

GRD16 flying/stacking grid
LR16 2-way active 2x 8”+RBN601
ALC4 2x 2kW controller-amp
DDP Digital Drive Processor
LSC158 NL8 cable, 15meter
LSC0068 NL8 cable, 60centimeter
(cross-over LR16 70Hz - 1.2kHz.) |
1x
6x
2x (4 channels, 2.7 ohms ea.)
2x
2x
4x
|
|
|
|
|
|
|
