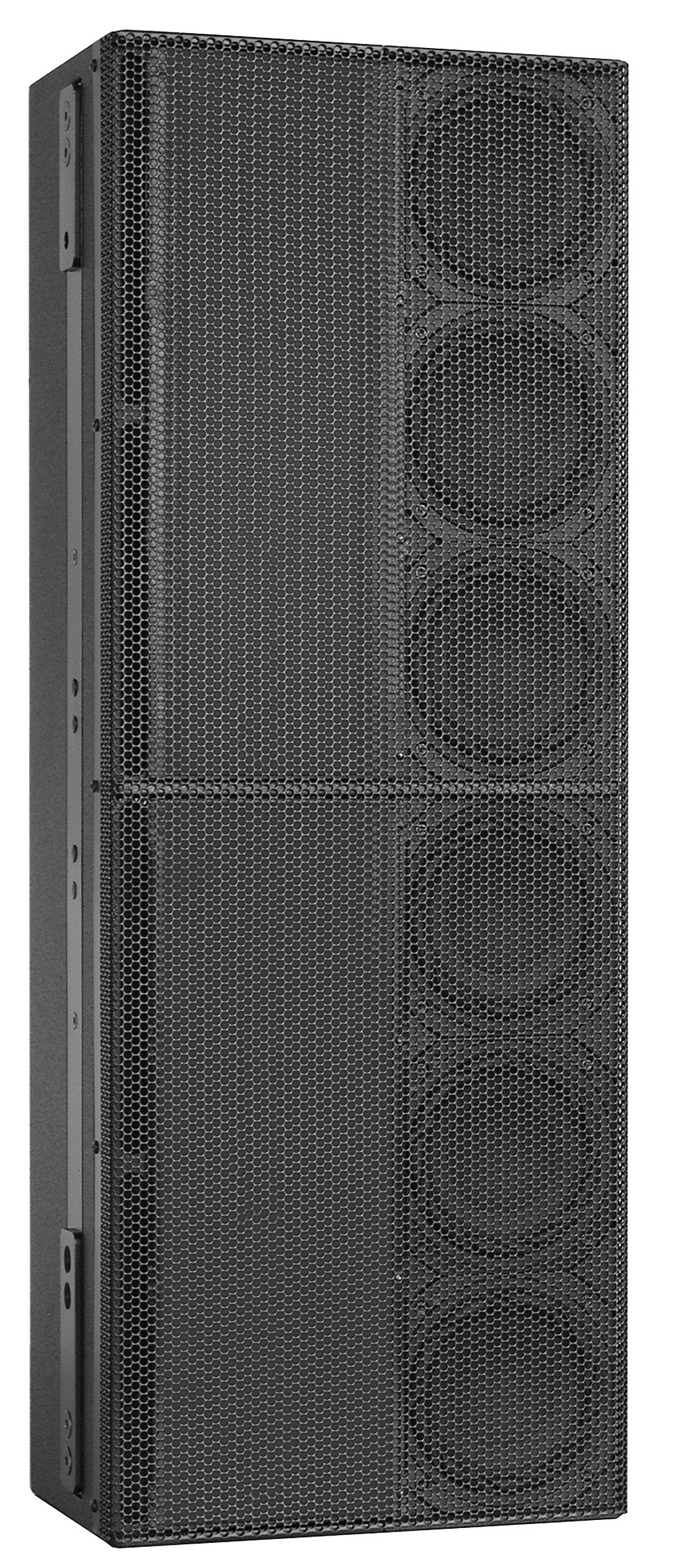

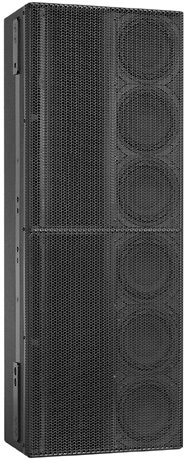

| The QM36 is a modular, limited bandwidth
loudspeaker to be used as vertical low-mid array,
either in stacked or flown configuration, for both
permanent and (limited) portable installations. It is
designed as low-mid extension of a QR-array.
The QM36 “array in-fill” module is applied
in a multiple QR-array, where the direct HF
reproduction/projection of a QR is not required,
but where an uninterrupted LMF line-source array
is desirable for extended frequency control.
The tightly spaced mid-bass transducers are fully
compliant with the laws of line-array behaviour.
The Signal Integrity Sensing™ pre-wiring ensures
complete cable/connector compensation between the QM36 and ALC. In this way, the ALC can be
loaded down to 2 ohms, without any sacrifice on
response quality (2 units QM36 parallel on one
channel loads 3 ohms).
Typical applications for the QM-systems include
“array in-fill” to a QR main system for theatre, PA
system in “acoustically challenging rooms”, as well
as high power side-fill stage monitoring.
For full system performance, the QM36 needs to be
driven by an ALC controller-amplifier. Driven by the
ALC, the QM36 delivers maximum sound quality
with inaudible (power and excursion) protection
(SDP circuit). |
