technical specifications TS3 |
|
| |
|
|
|
| |
|
|
general |
|
|
|
|
|
|
| |
 |
|
- 1” soft-dome tweeter on a small wave-guide for increased
HiFi quality output
- SIS pre-wired for very high damping and further reduced distortion
(with ALC)
- Dedicated protection in combination with SDP modules (with ALC)
- 16 ohms impedance offers economical connection of multiple systems
- Omnimount™ mounting points, bracket (option)
- Passive filtering for easy operation and economical powering
|
| |
 |
|
|
|
   |
| |
|
| |
|
|
|
| |
|
|
description |
|
|
|
|
|
|
| |
|
|

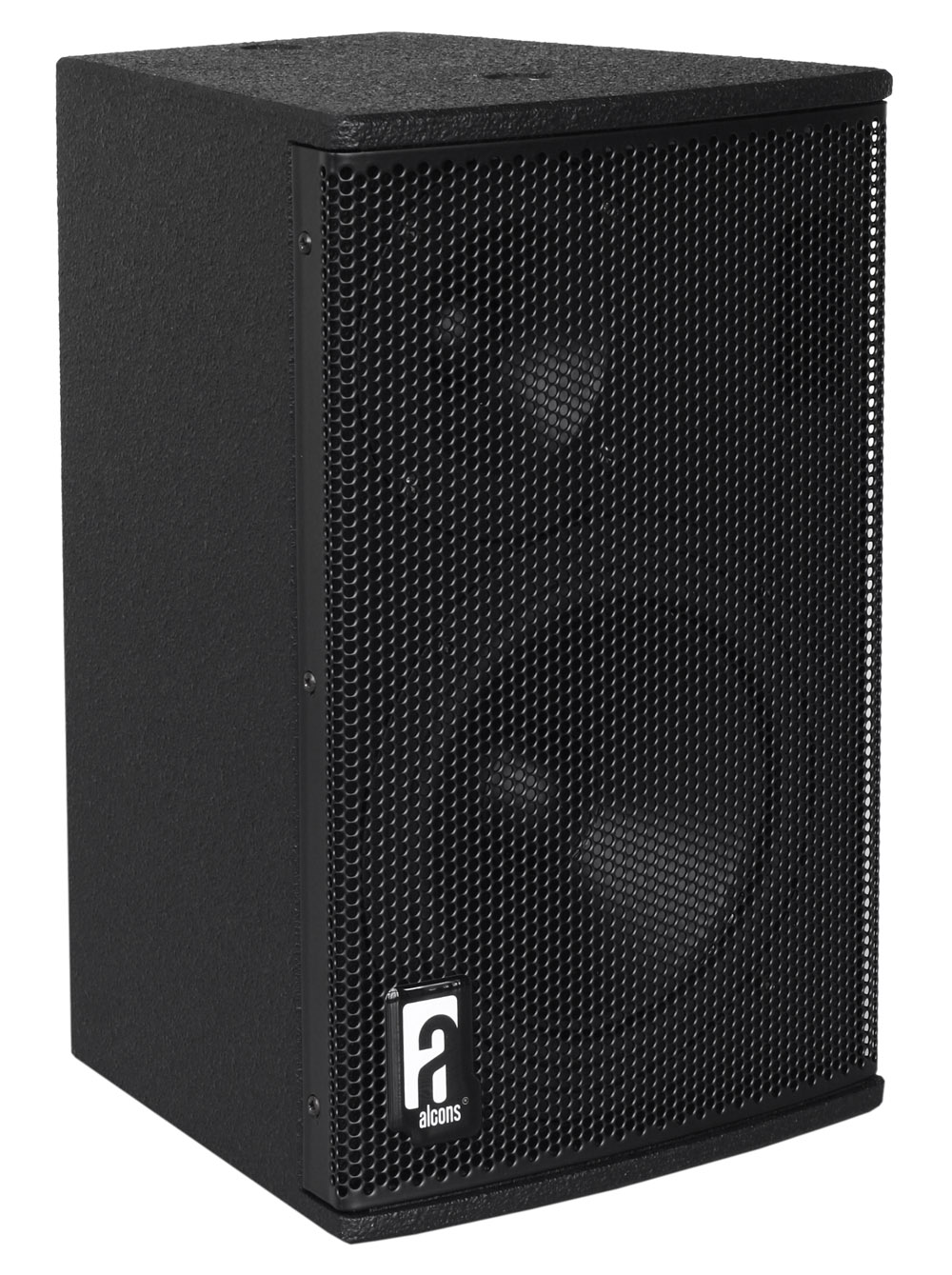

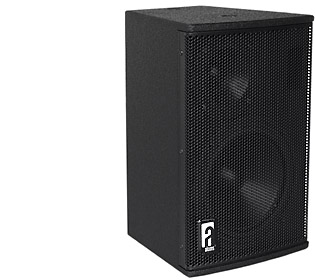

The TS3 is a 2-way
ultra-compact versatile loudspeaker, for permanent applications. Featuring
a 1” soft-dome tweeter with single 6.5” high quality woofer,
the TS3 delivers exceptional performance from a very compact and efficient
package. The system includes dedicated filtering and system equalizing.
The SIS pre-wiring ensures complete cable/connector compensation
between the TS3 and ALC. The enclosure design provides for low profile
mounting (ceiling, wall). Typical applications for the TS3 include
background system for medium installations (theatre, A/V, PA) or
fill/delay/surround speaker in medium sized systems. In applications
where extended bass response is required, the TS3 can be combined
with a bass or sub bass system.
For full system performance, TS3 can be used in combination with
an ALC2 (or ALC4) amplifier/ controller. Driven by the ALC, the
TS3 delivers maximum sound quality and output power with inaudible
(power and excursion) protection (SDP circuit).
|
| |
|
|
|
| |
technical specifications |
|
physical specifications |
|
|
|
|
|
|
| |
| Frequency Response |
|
|
|
| +/- 3 dB |
|
67 Hz - 20.000 Hz |
|
|
| +/- 10 dB |
|
47 Hz - |
|
|
|
| Sensitivity (SPL 1W/M) |
|
89 dB |
|
|
|
| Nominal Impedance |
|
16 Ohm |
|
|
|
| Maximum RMS power |
|
100 Watt |
|
|
|
| Maximum peak power |
|
400 Watt |
|
|
|
| SPL program/peak |
|
109/115 dB |
|
|
|
| Dispersion H x V |
|
90° x 60° |
|
|
|
| Polarity |
|
positive voltage on |
|
|
|
| |
|
terminal 1+ of Speakon |
|
|
|
| |
|
gives forward cone |
|
|
|
| |
|
motion |
|
|
|
|
|
| System |
|
2-way, full range |
|
|
|
| Filtering |
|
passive |
|
|
|
| Drivers LF |
|
1 x AMB65 6,5”, |
|
|
|
| |
|
vented |
|
|
|
| Drivers HF |
|
1 x AST1” |
|
|
|
| |
|
soft-dome tweeter |
|
|
|
| Cross-over frequency |
|
3000 Hz. |
|
|
|
| Connectors |
|
2 x Speakon NL4 input |
|
|
|
| Physical dimensions |
|
mm inches |
|
|
|
| Height |
|
303 11,9 |
|
|
|
| Width |
|
200,5 7,9 |
|
|
|
| Depth |
|
198 7,8 |
|
|
|
| Netto Weight (approx.) |
|
4,6 kg (10,1
lb) |
|
|
|
| Warranty |
|
6 years limited |
|
|
|
|
| |
|
| |
«
