technical specifications TS7 |
|
| |
|
|
|
| |
|
|
general |
|
|
|
|
|
|
| |
 |
|
- 1” soft-dome tweeter on a small wave-guide for increased
HiFi quality output
- SIS pre-wired for very high damping and further reduced distortion
(with ALC)
- Dedicated protection in combination with SDP modules (with ALC)
- Omnimount™ mounting points, bracket (option)
- Passive filtering for easy operation and economical powering
|
| |
 |
|
|
|
   |
| |
|
| |
|
|
|
| |
|
|
description |
|
|
|
|
|
|
| |
|
|

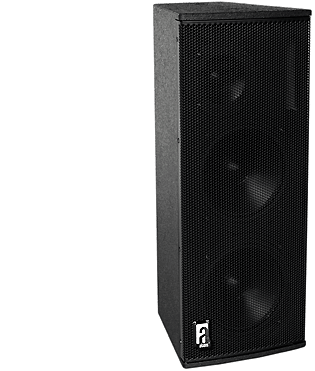

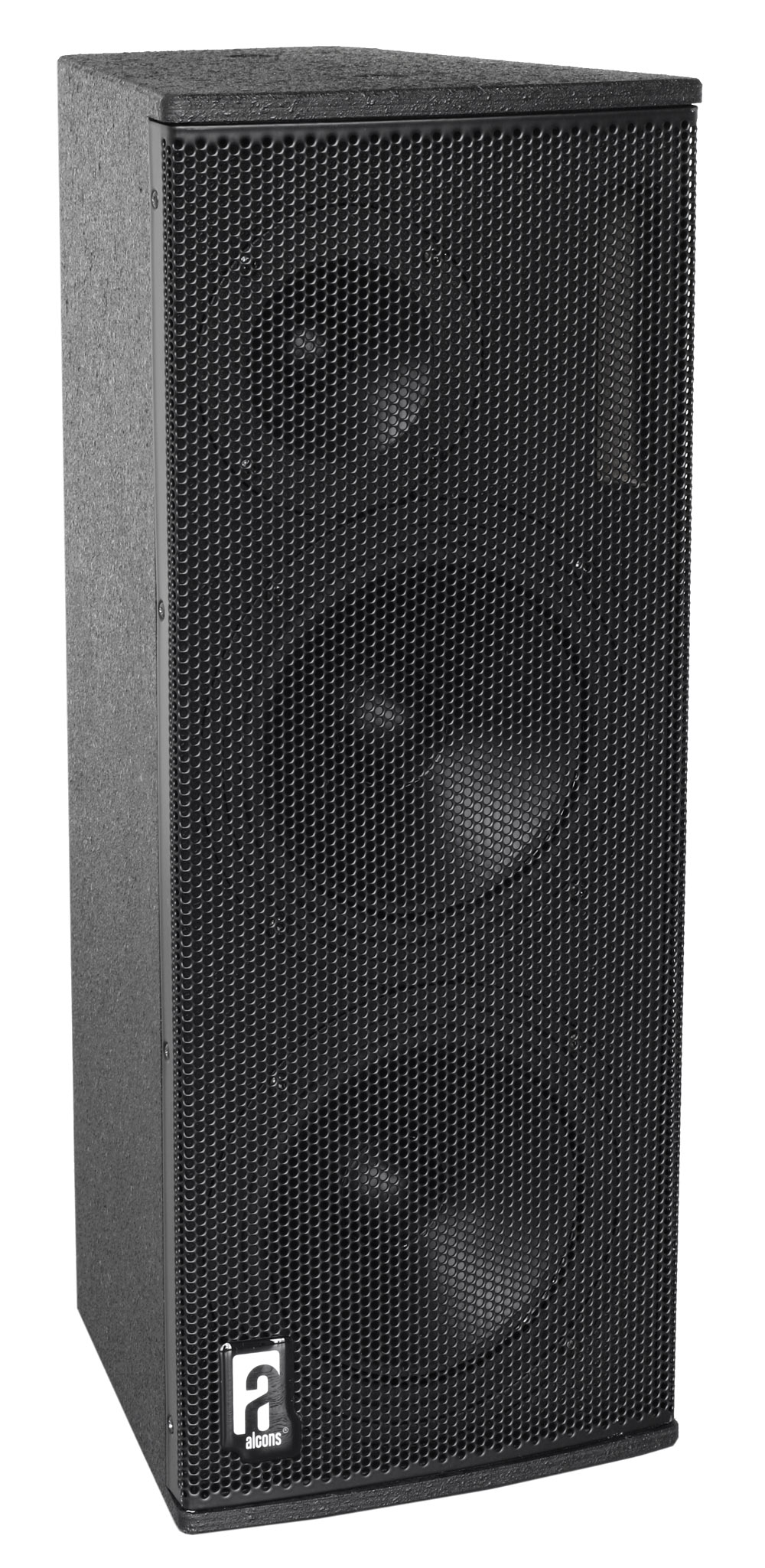

The TS7 is a 2-way
ultra-compact versatile loudspeaker, for both permanent and limited
portable applications. Featuring a 1” soft-dome tweeter with
double 6.5” high quality woofers, the TS7 delivers exceptional
performance from a very compact and efficient package. The system
includes dedicated filtering and system equalizing.
The SIS pre-wiring ensures complete cable/connector compensation
between the TS7 and ALC. The enclosure design provides for low profile
mounting (ceiling, wall). Typical applications for the TS7 include
nearfield main system for small theatre, A/V, PA or fill/delay speaker
in larger systems. In applications where extended bass response
is required, the TS7 can be combined with a bass or sub bass system.
For full system performance, TS7 can be used in combination with
an ALC2 (or ALC4) amplifier/ controller. Driven by the ALC, the
TS7 delivers maximum sound quality and output power with inaudible
(power and excursion) protection (SDP circuit).
|
| |
|
|
|
| |
technical specifications |
|
physical specifications |
|
|
|
|
|
|
| |
| Frequency Response |
|
|
|
| +/- 3 dB |
|
66 Hz - 20.000 Hz |
|
|
|
| +/- 10 dB |
|
47 Hz. |
|
|
|
| Sensitivity (SPL 1W/M) |
|
92 dB |
|
|
|
| Nominal Impedance |
|
8 Ohm |
|
|
|
| Maximum RMS power |
|
200 Watt |
|
|
|
| Maximum peak power |
|
800 Watt |
|
|
|
| SPL program/peak |
|
115/121 dB |
|
|
|
| Dispersion H x V |
|
90° x 40° |
|
|
|
| Polarity |
|
positive voltage on |
|
|
|
| |
|
terminal 1+ of Speakon |
|
|
|
| |
|
gives forward cone |
|
|
|
| |
|
motion |
|
|
|
|
|
| System |
|
2-way, full-range |
|
|
|
| Filtering |
|
passive |
|
|
|
| Drivers LF |
|
2 x AMB65 6,5” |
|
|
|
| |
|
vented |
|
|
|
| Drivers HF |
|
1 x AST1” |
|
|
|
| |
|
soft-dome tweeter |
|
|
|
| Cross-over frequency |
|
3000 Hz. |
|
|
|
| Connectors |
|
2 x Speakon NL4 input |
|
|
|

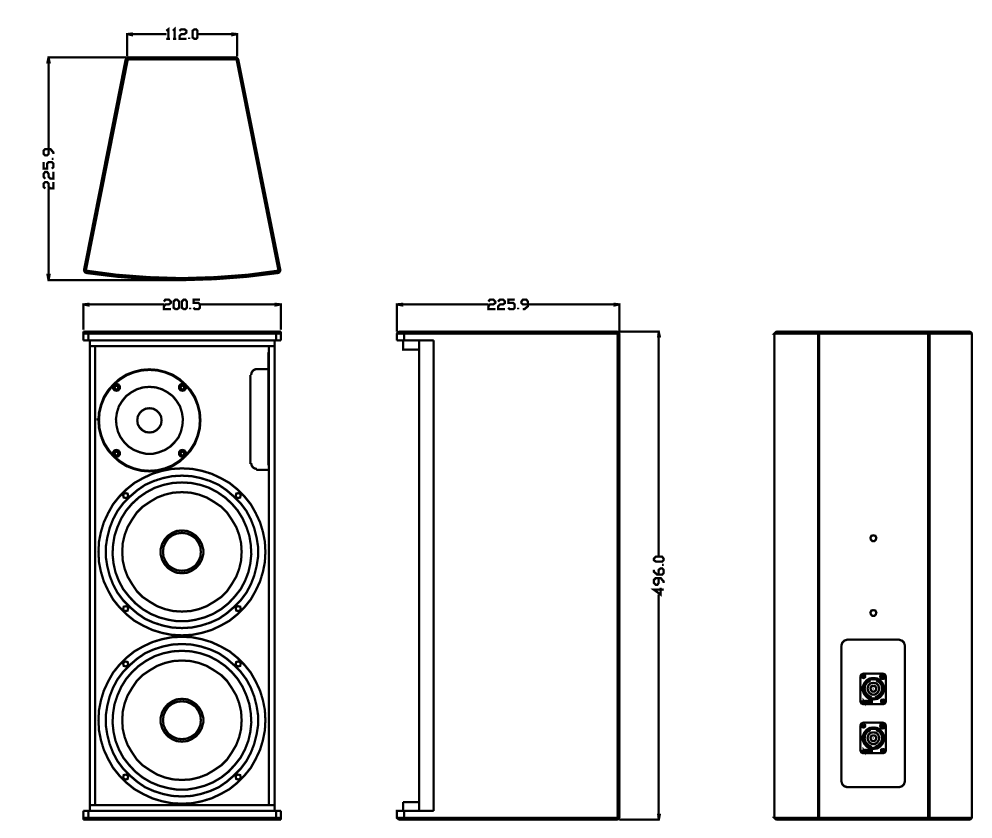

| Physical dimensions |
|
mm inches |
|
|
|
| Height |
|
496,0 19,5 |
|
|
|
| Width |
|
200,5 7,9 |
|
|
|
| Depth |
|
225,9 8,9 |
|
|
|
| Netto Weight |
|
6,6 kg (14,6 lb) |
|
|
|
| Warranty |
|
6 years limited |
|
|
|
|
| |
|
| |
«
