  technical specifications VR12/60
      general

  • RBN601 pro-ribbon HF driver with exceptional intelligibility and high SPL output
  • All Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Extended headroom/SPL and protection in combination with SDP modules (with ALC).
  • Asymmetric enclosure provides maximum positioning flexibility and optimum projection
  • Stand mount adapter, 6-position fly track, fixed mounting points (standard), swivel bracket (option)
  • Passive filtering for easy operation and economical powering, while maintaining maximum output
  • Durotect™ scratch-resistant coating



      description

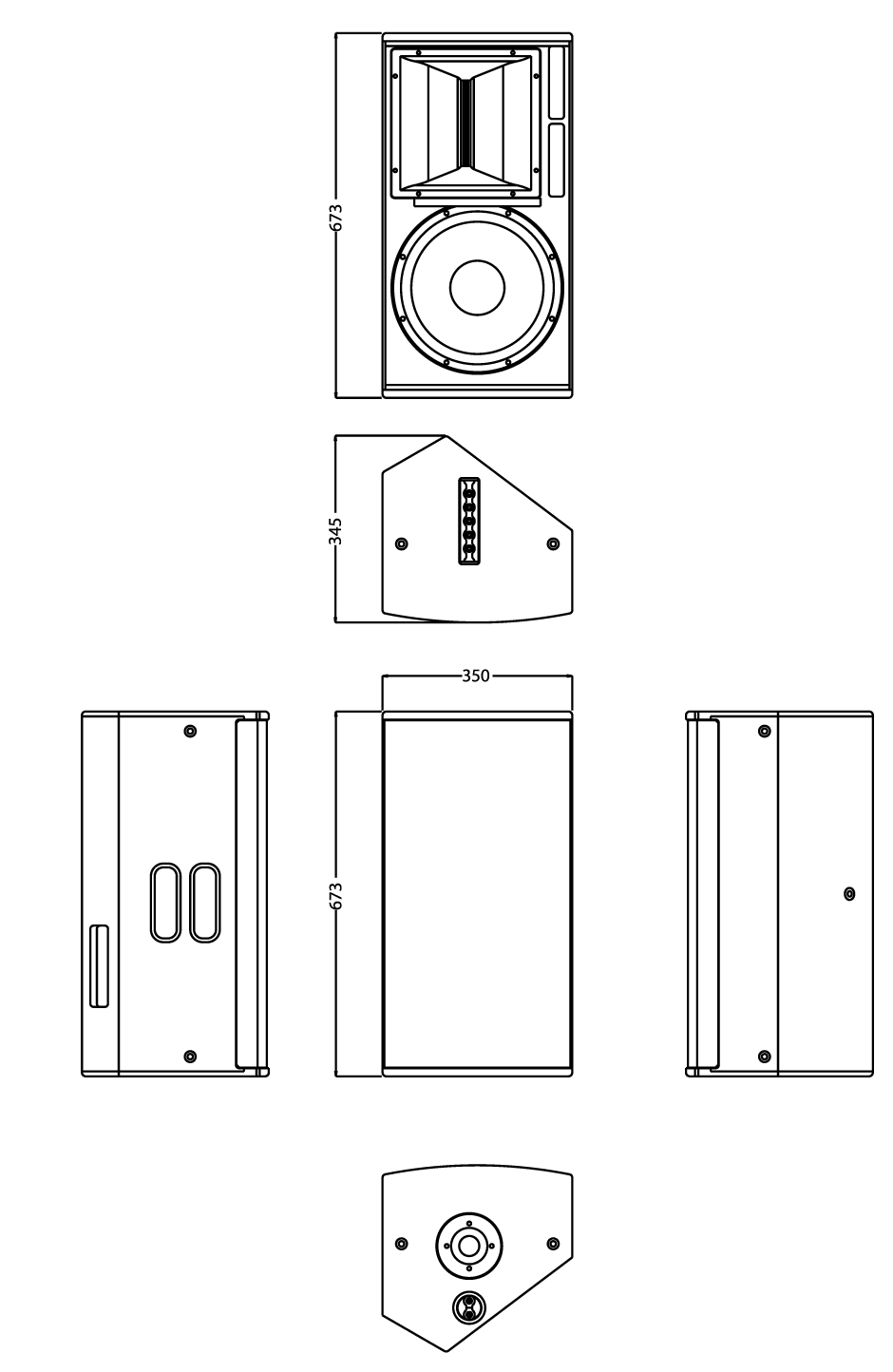

dimensional drawing

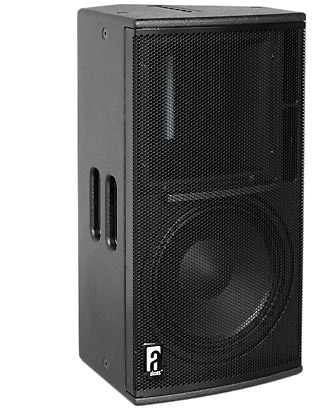

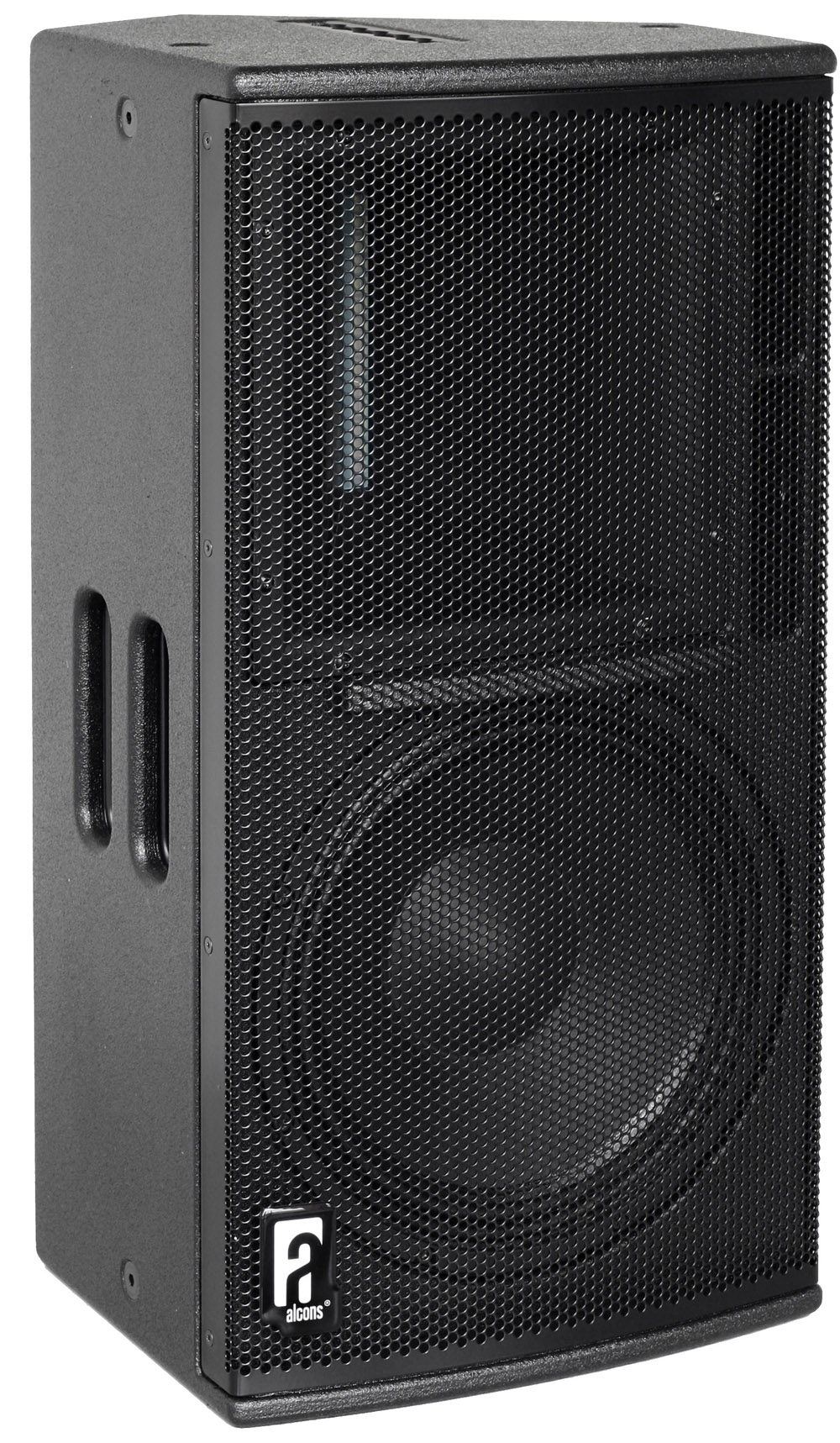

  The VR12/60 is a 2-way compact multi-purpose loudspeaker, for both portable and permanent applications. Featuring the patented RBN601 proribbon driver, the VR12/60 is ideal for applications where high output, high quality reinforcement is needed.
The RBN601 is mounted on a “non-revolvable” 60°x30° wave-guide and projects with “Real-60” horizontal dispersion up to 20.000Hz..

The system includes dedicated filtering, but system equalizing is done remotely (electronically) fully utilizing the individual speaker components’ power capacity. This results in dramatically increased headroom SPL.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between VR12/60 and ALC. The asymmetrical enclosure design provides for very flexible mounting (ceiling, wall) and usage.

For full system performance, the VR12/60 needs to be driven by an ALC controller-amplifier. The SpeakerDriveProcessing™ circuit of the ALC offers dedicated protection and filtering, with remote system equalizing; By fully utilizing the individual speaker components’ efficiency, this results in a 5dB increased headroom from 800Hz., under dedicated inaudible (power and excursion) protection.

  technical specifications   physical specifications

Frequency Response
+/- 3 dB   60 Hz - 20.000 Hz
+/- 10 dB   50 Hz -
Sensitivity (SPL 1W/M)   98 dB
Sensitivity (nom.)   101 dB (200Hz-10kHz)
Nominal Impedance   8 ohms
Maximum RMS power   450 W
Maximum peak power   1500 W
SPL program/peak (nom.)   128/133 dB
Dispersion H x V   60° x 30°

System 2-way, full-range
Filtering   passive
Drivers LF   1 x AND12.3 12”,
    Neodymium, vented
Drivers HF   1 x RBN601 6”
    ribbon driver
Cross-over frequency   1000 Hz
Connectors   2 x Speakon NL4 input
Physical dimensions   mm        inches
Height   673        26.5
Width   350        13.8
Depth   345        13.6
Weight (approx.)   18 kg     (39.6 lb)
Warranty   6 years limited

      The VR12/60 is available in standard version and “i” installation version, without handle, standmount and tilt-point. Also, both models are available as “m” version, without mirrored baffle.
