The Alcons Ribbon line-array currently consists of 3 systems: The LR7 micro line-array, the LR14 ultra-compact line-array system and the LR16 compact line-array system, of which LR7 and LR14 available in both 90-degree and 120-degree horizontal dispersion. Each system is designed to offer maximum versatility in its applications. The Alcons line-arrays share the same system philosophy in sound quality, projection accuracy, throw efficiency and system logistics; Standard The Ribbon system configurations are made of sections of 3 units LR: So, arrays of 3, 6, 9, 12 up to 24pcs. (LR7: 18pcs.) per array can be configured, all with an “over-spec’d” safety-rating of 10:1. Each system can be configured in a number of ways:
What system configuration to select, depends on size of application (SPL, coverage) , type of sound to be reinforced (speech, classical, pop/rock, etc.), specific requirements (sightlines, low-ceiling, projection areas), etc. Please revert to the chart with all possible configurations.
The line-arrays feature all-integrated flying-hardware, without any separate/loose parts; Together with the clever logistics of the FC14 and FC16 transportation systems, this caters for very quick and easy set-up and strike. The standard amplifier-loading for both LR14 and LR16 is 3 cabinets (either LF or HF) per amplifier channel, creating a 2.7 ohms load. The 2 ohms stability at full power of the ALC offers ample relay possibilities in case of "emergencies" or different system configurations. |
 The LR7 systems main component is the LR7, a passive-filtered, micro line-array module, featuring single 6.5” woofer and the RBN401 pro-ribbon driver. Available with two dispersion choices, 120° x 15° (HxV), or 90° x 15° (HxV), the LR7 offers unparalleled precise projection control and throw in small to medium applications. The micro size, combined with the weight-saving all Neodymium drivers, leads to a weight of just 8kg / 17.6lb. making the system very easy to handle.
LR7

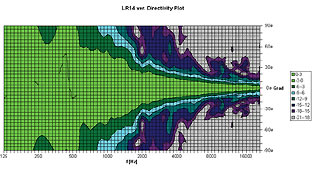

system components The LR14 systems main component is the LR14, a passive-filtered, ultra-compact line-array module, featuring double 6.5” woofers and the RBN401 pro-ribbon driver. Available with two dispersion choices, 120° x 15° (HxV), or 90° x 15° (HxV), the LR14 offers unparalleled precise projection control and throw in small to medium applications. The ultra-compact size, combined with the weight-saving all Neodymium drivers, leads to a weight of just 15kg / 33lb. making the system very easy to handle. LR14 system components LR14 system configurations The LR16 systems main component is the LR16, an active-filtered, compact line-array module, featuring double 8” woofers and the RBN601 pro-ribbon driver. With a dispersion of 90° x 10° (HxV), the LR16 offers unparalleled precise projection control and throw in medium to large applications. The compact size, combined with the weight-saving all Neodymium
drivers, leads to a weight of just 29kg / 64lb. making the system
very easy to handle. In ARC, the performance of the system can be predicted for an unlimited number of planes. The inter-cabinet angles can be adjusted manually, as well as through the “auto-shooter” function, in order to get a flat SPL, represented by the system’s response at different frequencies. The resolution of the wide SPL display can be set in variable steps of down to 1dB. The desired angles are calculated with 0,7-degree (LR16), 1-degree (LR14) and 1,5-degree (LR7) accuracy: atmospheric conditions input, rigging info, print-options and much more helpful features of the ARC software transform The Ribbon line-arrays into a precision instrument.

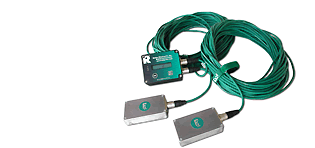

The AIM1 system comes with one dual-display read-out box, two magnetic sensor boxes and two 25m/75ft. signal cables. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
