CRMS-SRHV/9040

CRMS-SRHV/9040 - wide versatile reference surround

  • Reference-quality high-resolution audio ready immersive sound system
  • Unique voicing match with Alcons pro-ribbon loaded screen systems
  • 1:1 non-compressed sound reproduction, with up to 90% less distortion
  • RBN401 pro-ribbon HF driver with exceptional intelligibility and dynamic output
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Patented horizontal dispersion for extremely wide imaging

Product description

The CRMS-SRHV surround is a 2-way passive-filtered full range loudspeaker, designed to meet all requirements of current and future immersive surround sound formats.

Featuring the patented Alcons pro-ribbon driver technology, the CRMS-SRHV combines an exceptional clarity and intelligibility with an unusually high dynamic range, offering the most realistic sound reproduction possible.

Due to the “compression-less” principle of the pro-ribbon transducer, the system has a linear response at any SPL.

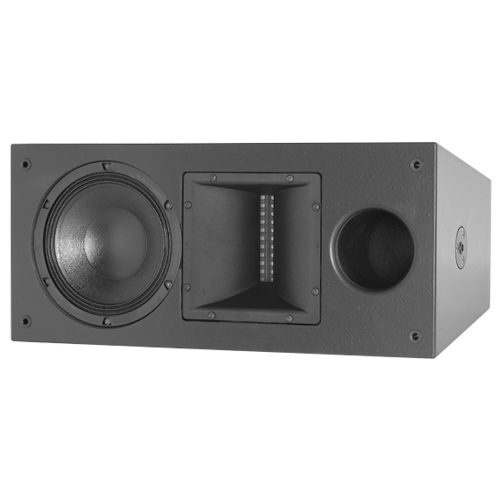

The CRMS-SRHV system consists of the RBN401 pro-ribbon driver for HF and a vented 8” mid-bass for LF reproduction. The CRMS-SRHV/9040 HF section has an 800 W peak power input, enabling a 1:15 dynamic range with up to 90% less distortion from 1 kHz to beyond 20 kHz.

The patented (90-degrees) horizontal offers a very wide horizontal and controlled vertical coverage up to the highest frequencies; Very important for the seamless imaging in base channels of immersive systems.

The CRMS-SRHV/9040 is designed as matching surround system for the CRMS system: By utilizing identical MHF components, a perfect voicing matching between screen- and surround system is realized, resulting in an exceptionally wide and uniform sound stage throughout the entire listening area.

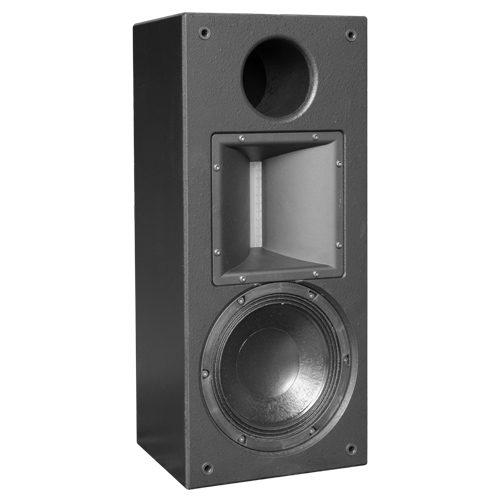

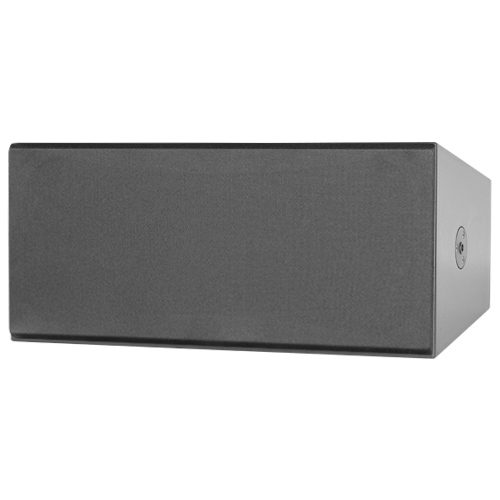

The revolvable RBN waveguide and trapezoidal enclosure together with the optional grill and ACO™ color option, provides for easy, low profile wall or ceiling mounting.

For full system performance, the CRMS-SRHV needs to be driven by an ALC controller-amplifier, delivering maximum sound quality with increased headroom and utmost operation reliability. The system is available in 8 ohms and 4 ohms version, for maximum amplifier efficiency in individually-amplified immersive surround systems.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the CRMS-SRHV and ALC, significantly increasing response accuracy, regardless of cable length and system impedance, with tight and accurate mid and bass response as result.

Typical applications include (base layer) immersive surround sound system or compact screen system for performing arts theaters, screening rooms, post-production facilities and dubbing stages, premium Home Cinemas and quality-conscious PLF cinemas.

The CRMS-SRHV system is available with 90° x 40° (CRMS-SRHV/9040) or 90° x 90° (CRMS-SRHV/9090) dispersion pattern.

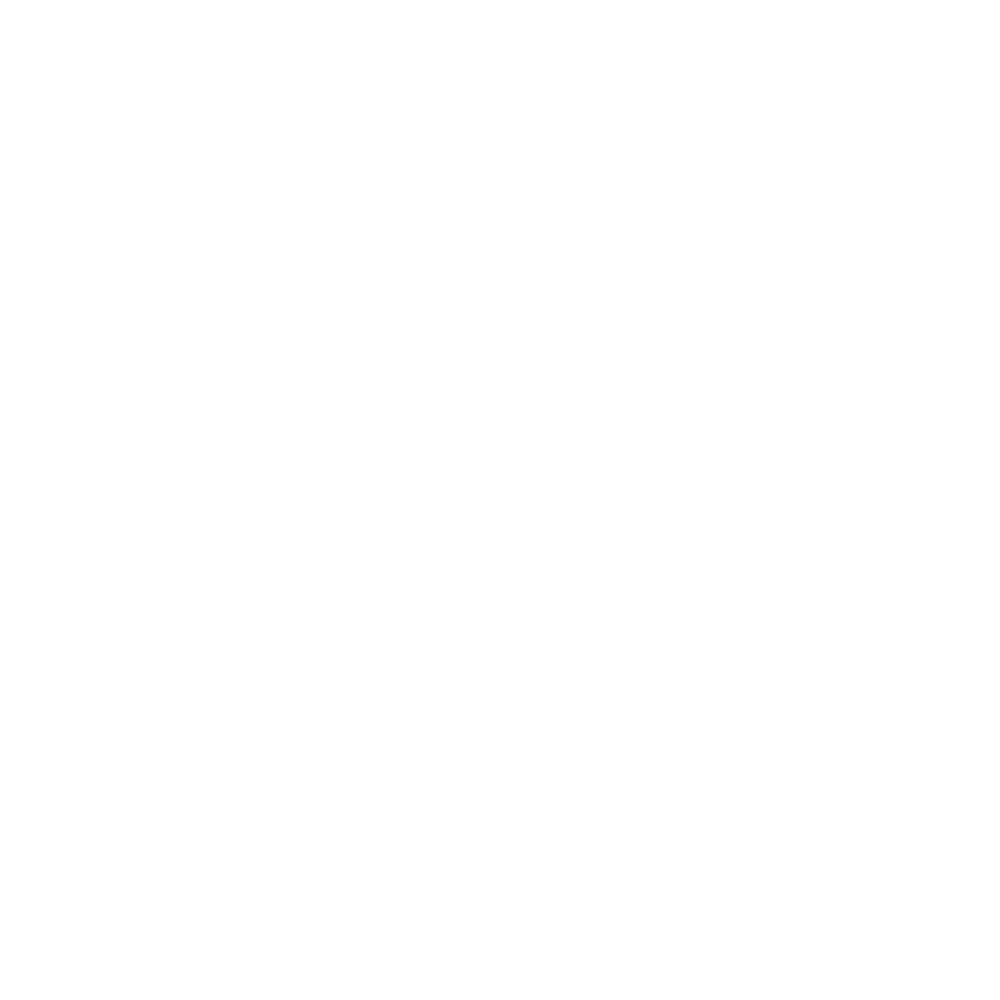

Dimensional drawing

Technical specifications

Frequency response 74 Hz - 20.000 Hz (+/- 3 dB)
58 Hz - (+/- 10 dB)
Sensitivity nominal 101 dB (8 ohms, 200 Hz - 10 kHz)
101 dB (4 ohms, 200 Hz - 10 kHz)
Nominal impedance   8 ohms or 4 ohms
Recommended drive Sentinel3 min., max. 3 pcs (8 ohms)
1 pce (4 ohms) per channel (2.7 ohms / 4 ohms)
Nominal SPL peak 127 dB
(Sentinel3  8 ohms 200 Hz - 10 kHz)
130 dB
(Sentinel3 4 ohms 200 Hz - 10 kHz)
133 dB
(Sentinel10 8 ohms 200 Hz - 10 kHz)
135 dB
(Sentinel10 4 ohms 200 Hz - 10 kHz)
Dispersion
H x V
90° x 40° or 40° x 90° (40° line-source)

Physical specifications

System 2-way, full-range
Filtering passive
Driver LF 1x AMB8 8”, vented
Driver HF 1x RBN401 4” pro-ribbon driver

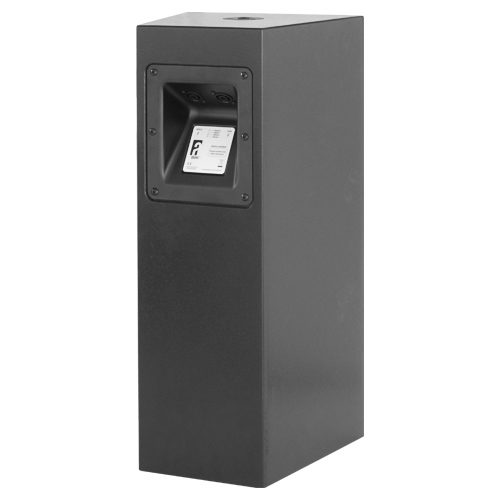

Connectors 2x Speakon NL4 input/link
Physical dimensions  mm                 inches
Height 250                     9.8
Width 570                   22.4
Depth 250                     9.8
Weight (approx.) 12,5 kg             27.6 lb
Warranty 6 years limited
