BF302 mkII

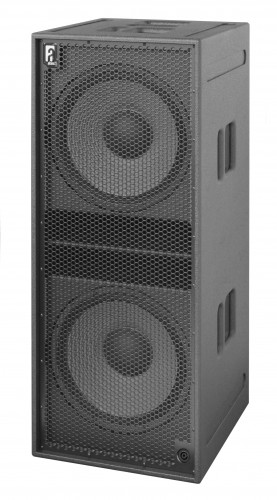

BF302 mkII - high-output subwoofer

  • High-output, direct-radiating double 15” subwoofer system
  • Extended-excursion vented-spider 15” woofers
  • Individual vents/chambers for improved breathing capacity
  • Optimal drive performance with ALC amplified loudspeaker controller
  • SIS™ pre-wired for very high damping and further reduced distortion
  • Front-positioned NL4 connector for easy cardioid connection

Product description

The BF302 is a high-performance subwoofer system, delivering tight and accurate bass response with very low distortion. It features double 15” long-excursion woofers, with vented double-spider frame and 4” voice-coil for a stable and prolonged high output.

Each direct-radiating woofer is mounted in its own individually-vented chamber with large bass reflex ports for excellent breathing capacity, increasing overall output while minimising port-compression.

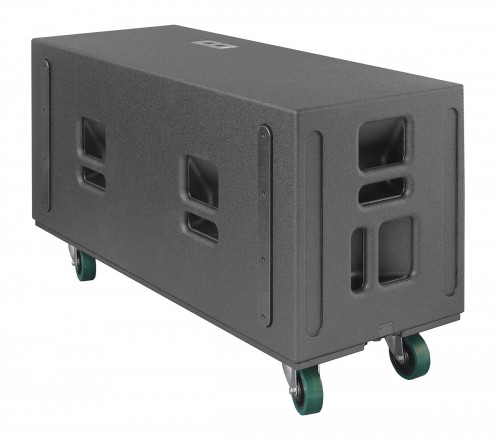

The double baffle board and the combination of complex internal panel lay-out with extensive bracing brings a rigid structure with a high enclosure stiffness from a relatively low-weight package. It is finished in Durotect™ scratch-resistant coating and is fitted with 8 handles for easy logistics (road-version).

For full system performance, the BF302 is driven and controlled by the ALC amplified loudspeaker controller; Driven by the ALC, the BF302 delivers maximum sound quality and output power with long-term operation reliability. The integrated factory presets in the drive processor of the ALC offer gain, phase and filtering matching with all Alcons top systems, including cardioid projection control presets. The additional front-positioned NL4 connector caters for easy “reverse connection” in cardioid arrays.

The BF302 is SIS™ pre-wired: Through the Signal Integrity Sensing circuit of the ALC, the cable-length and connector resistance between the BF302 and ALC is dynamically compensated (system damping factor 10.000), further reducing distortion, while increasing response accuracy.

The BF302 is available in road-version and installation (“i”) version, without handles and wheel dolly board. Through the Architect Color Option™ program, the BF302 can be finished in any RAL™ color.

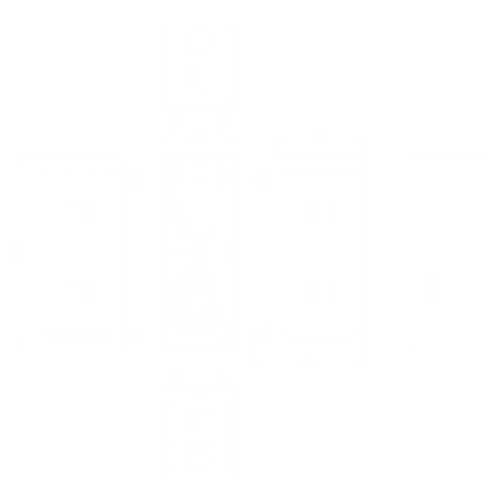

Dimensional drawing

Technical specifications

Frequency response 40 Hz - 300 Hz (+/- 3 dB)
34 Hz - (+/- 10 dB)
Sensitivity nominal 100 dB (40 Hz - 100 Hz)
Nominal impedance   4 ohms
Recommended drive Sentinel10
Nominal SPL peak 134 dB (Sentinel10 40 Hz - 100 Hz)
139 dB (comparative)
Dispersion H x V omni / (hyper) cardioid
in array with processing

Physical specifications

System   subwoofer, front loaded
Drivers LF   2 x AW15.4-8 15” woofers,
    centrally vented
Connectors   3x Speakon NL4 input/link
Physical dimensions   mm        inches
Height   1147       45.2
Width   460         18.1
Depth   509         20.0
Weight (approx.) BF302   75,9 kg    167.3 lb
                             BF302i   65,6 kg    144.6 lb
Warranty   6 years limited
