CCS6

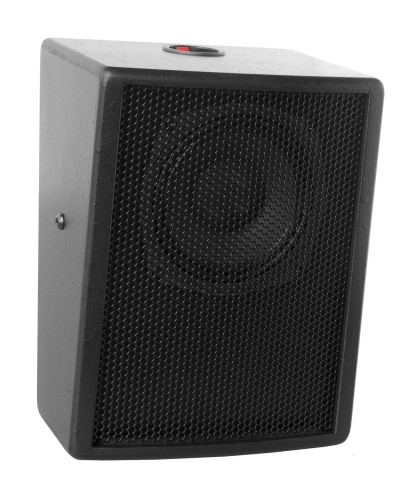

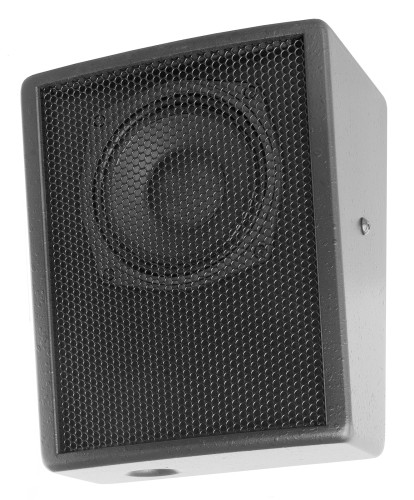

CCS6 - small-format surround

  • 1” exit compression driver with 6.5” woofer in coaxial configuration
  • High power handling; 165W. continuous (AES)
  • 90° conical dispersion
  • Available in 2 different cabinet designs (wall / ceiling mount)
  • Ideal for immersive surround or acoustical enhancement systems

Product description

The CCS6 is a passive-filtered 2-way full range loudspeaker, designed for multi-channel acoustical enhancement and (immersive) surround applications.
The CCS6 features a 6.5” high quality, bass-reflex-loaded woofer with a 2” voice-coil, placed in an optimally-tuned cabinet for extended low-frequency response.
The high-frequencies are taken care of by a 1” compression-driver coaxially mounted on the woofer.

A high-quality passive 2-way crossover network matches the two components, allowing 165W of continuous (AES) power input, making the CCS6 deliver exceptional performance from a very compact sized system.

The coaxial speaker arrangement creates a true point-source catering for a very smooth LF/HF blending in all directions, both on-axis as well as off-axis. This is an ideal solution in ceiling-mounted surround applications.

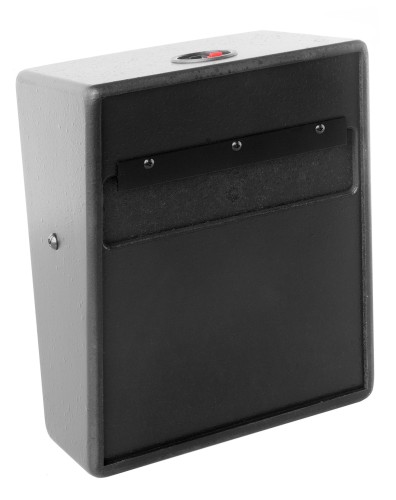

The 15-degree slanted baffle design (CCS6) provides for a low profile in wall mounted applications.
The enclosure design matches the Alcons surround aesthetics. Even in an assembled surround configuration of different systems, there’s a consistent, unobtrusive appearance.

The CCS6 is also available with a straight, non-slanted ultra-shallow cabinet for ceiling-mounted applications (or when pre-tilt is not required) as CCS6S, with absolute minimal mounting depth.

Multiple options are provided for ceiling and wall mounting; The CCS6 can be wall-mounted with the BRKCS6 tilt U-bracket or wall- and ceiling mounted with most commonly-applied brackets.

For full system performance, CCS6 is to be used in combination with an ALC amplified controller. Driven by the ALC, the CCS6 delivers maximum sound quality and output power with inaudible (power and excursion) protection .

Dimensional drawing

Technical specifications

Frequency response   75 Hz - 20.000 Hz     (+/- 3dB)
61 Hz     -        (+/-10dB)
Sensitivity nominal   103 dB (200 Hz - 10 kHz)
Nominal impedance     8 ohms
Recommended drive   Sentinel3 min., max. 3 pce. per channel (2.7 ohms)
Nominal SPL peak   129 dB Sentinel3 (200 Hz - 10 kHz)
134 dB Sentinel10 (200 Hz - 10 kHz)
Dispersion H x V   90° conical (nom.)

Physical specifications

System   2-way, full-range
Filtering   passive
Drivers LF   1x AMB6-8, vented
Drivers HF   1x ACD1 compression driver, co-axially mounted
Connectors     spring-loaded terminals
Physical dimensions   mm             inches
Height   319             12,6
Width   248              9,8
Depth   202              8,0
155 (S)         6,1 (S)
Weight     (approx.)   5.1kg
Warranty   6 years limited
