BC272

BC272 - medium-output cardioid subwoofer

  • Double-tuned, bass-reflex loaded cardioid-control subwoofer system
  • Single 15” woofer with 12” woofer in cardioid arrangement
  • Large vents for improved breathing and low port compression
  • Low impedance for efficient amplifier loading
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Selectable cardioid patterns with up to 42dB rearward rejection

Product description

The BC272 is a self-contained, medium-output cardioid subwoofer system for both permanent and portable ground-stacked applications. It is designed to offer a tight and accurate sub-bass response, for low-frequency extension of any Alcons pro-ribbon system.

By means of a front and rear located woofer configuration, in combination with dedicated processing, the system offers selectable cardioid low-frequency pattern control and excellent rear rejection (up to 42dB), without the need for additional cabinets.

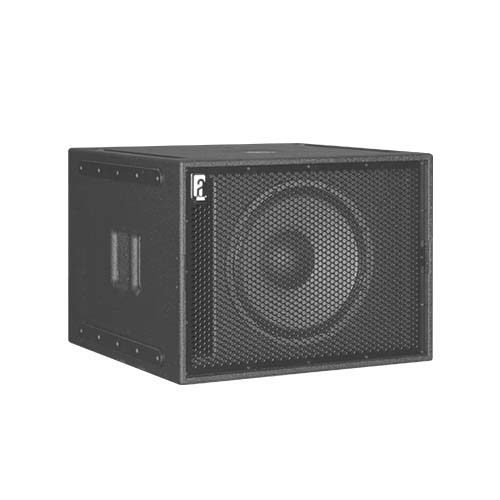

On the front side, one 15” long-excursion woofer with 4-in. voice-coil with double-spider and demodulation ring, is mounted in a front-loaded configuration.

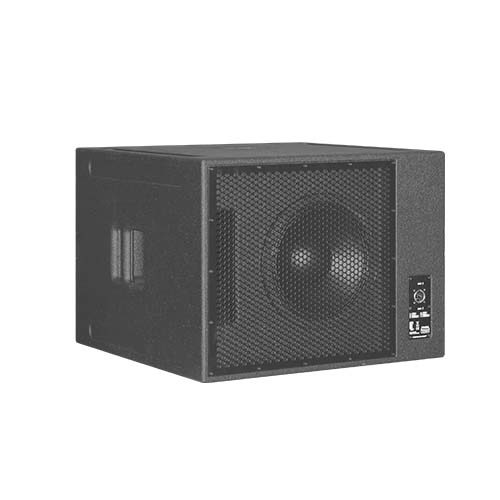

On the rear side, a single 12” long-excursion woofer with 4-in. voice-coil with double-spider, is mounted in a “front”-loaded configuration.

The large bass reflex ports on the front and the rear side enable excellent breathing capacity, increasing overall output while minimising port-compression.

The relatively low-weight, but rigid enclosure is finished in Durotect™ scratch-resistant coating and is fitted with 2 handles for easy logistics and an M20 stand mount flange (road-version).

The BC272 is powered and controlled by the ALC amplified loudspeaker controller. Driven by the ALC, the BC272 delivers maximum sound quality and output power with long-term operation reliability. Through the integrated processor, the ALC offers BC272-specific drive processing with response optimisation, dedicated power and excursion protection, and hybrid filtering.

The preset library contains cardioid settings for maximum rear-/side-ward attenuation.

The 4 ohms system impedance, makes for a very efficient amplifier loading; Thus enabling maximum output from a single, very compact configuration.

Through the SIS™ (Signal Integrity Sensing) circuit, the cable-length and connector resistance between the BC272 and ALC is completely compensated (system damping factor >10.000), for further increased accuracy and controlled cone-travel, resulting in a tighter sub and bass response.

The BC272 is available in road-version and installation (“i”) version, without handles, wheel dolly board and M20 threaded stand mount flange. It is finished in Durotect™ scratch-resistant coating; Through the Architect Color Option™ program, the BC272 can be finished in any RAL™ color.

Dimensional drawing

Technical specifications

Frequency response 40 Hz - 150 Hz (+/- 3 dB)
34 Hz - (+/- 10 dB)
Sensitivity nominal 97 dB (40 Hz - 100 Hz)
Nominal impedance   4 ohms/front, 4 ohms/rear
Recommended drive Sentinel3 min. 1 pce. per 2 ch
Nominal SPL peak 127 dB (Sentinel3 40 Hz - 100 Hz)
132 dB (Sentinel10 40 Hz - 100 Hz)
137 dB (comparative)
Dispersion H x V (hyper) cardioid / omni
(rear not connected)

Physical specifications

System   subwoofer, bass-reflex
front + rear
Drivers LF   1 x AW15.4/4 15” (front)
1 x AW12.4/4 12” (rear)
Connectors   1 x Speakon NL8 input
Physical dimensions   mm        inches
Height   500         19.7
Width   667         26.3
Depth   700         27.6
Weight (approx.) BC272   71 kg      158.5 lb*
                               BC272i   63 kg     138.9 lb
Warranty   6 years limited

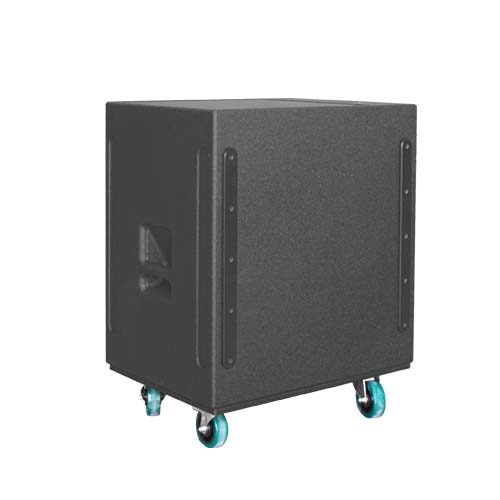

    * incl. wheel board
