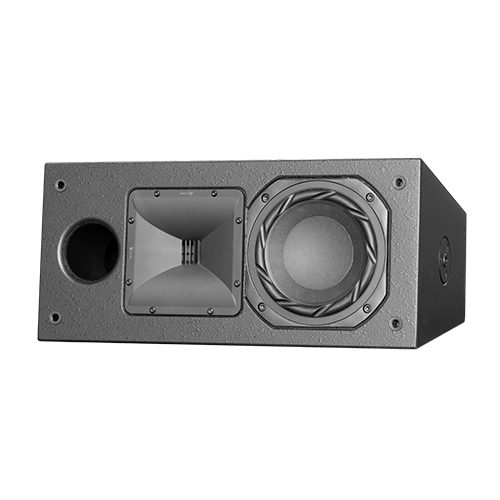

CRMSC-SRHV/120 - compact wide dispersion horizontal/vertical reference surround

  • RBN202 pro-ribbon HF driver, 6.5” vented Neodymium woofer
  • Signal Integrity Sensing™ pre-wired cable compensation
  • Revolvable waveguide with H 120° x V 90° dispersion

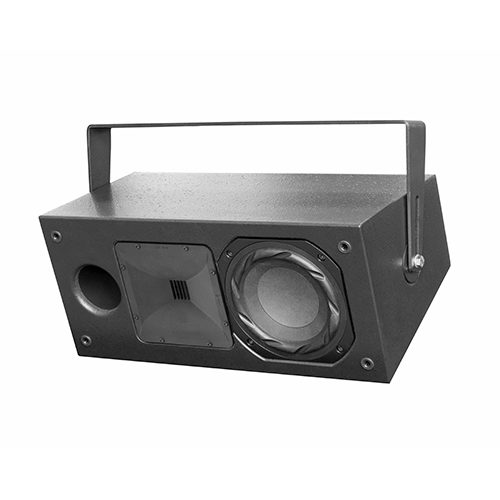

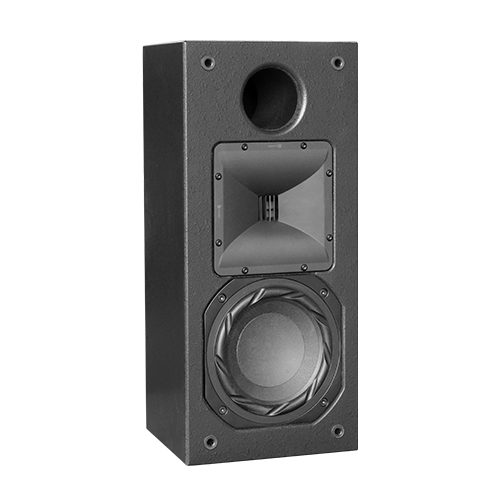

  • Flexible horizontal or vertical mounting
  • Choice of 2 impedance versions: 4 ohms (immersive) or 8 ohms (5.1/7.1)
  • Available in any color through the ACO™ RAL color option scheme

Product description

The CRMSC-SRHV surround is a 2-way passive-filtered full range loudspeaker, designed to meet all requirements of current and future cinema surround sound formats.

Featuring the patented Alcons pro-ribbon driver technology, the CRMSC-SRHV surround combines an exceptional clarity and intelligibility with an unusually high dynamic range, offering the most realistic sound reproduction possible.

The CRMSC-SRHV system consists of one RBN202 pro-ribbon driver for HF and a vented 6.5” mid-bass for LF reproduction. The CRMSC-SRHV/120 HF section has a 500 W peak power input, enabling a 1:16 dynamic range with up to 90% less distortion from 1 kHz to beyond 20 kHz.

The patented 120-degrees and patent-pending 90-degrees dispersion offers a very wide and consistent coverage to a larger number of seats in the auditorium; Due to the “compression-less” principle of the pro-ribbon transducer, the system has a linear response at any SPL.

The CRMSC-SRHV is designed as matching (height layer) surround system for the CRMSC system: By utilizing identical MHF components, a perfect voicing matching between screen- and surround system is realized, resulting in an exceptionally wide and uniform sound stage throughout the entire listening area.

The revolvable RBN waveguide and trapezoidal enclosure together with the optional grill and ACO™ color option, provides for easy, low profile wall or ceiling mounting.

For full system performance, the CRMSC-SRHV needs to be driven by an ALC controller-amplifier, delivering maximum sound quality with increased headroom and utmost operation reliability.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the CRMSC-SRHV and ALC, significantly increasing response accuracy, regardless of cable length and system impedance, with tight and accurate mid and bass response as result.

The CRMSC-SRHV system is available with 90° x 60° (“CRMSC-SRHV/90”) or 120° x 90° (“CRMSC-SRHV/120”) dispersion pattern.

Typical applications include surround sound system for premium Home Cinemas, high-end mix/screening rooms, quality-conscious post-production facilities and dubbing stages. As a result of Alcons’ tight manufacturing standards, all system cabinets are within “matched pair” tolerance.

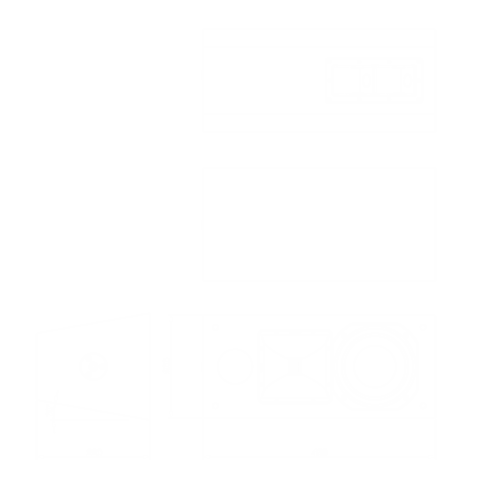

Dimensional drawing

Technical specifications

Frequency response66 Hz – 20.000 Hz (+/- 3 dB)
54 Hz - (+/- 10 dB)
Sensitivity nominal96 dB (200 Hz - 10 kHz)
Nominal impedance  8 ohms or 4 ohms
Recommended driveSentinel3 min., max. 3 pcs. per channel (2.7 ohms)
Nominal SPL peak121 dB (Sentinel3 200 Hz - 10 kHz)
127 dB (Sentinel10 200 Hz - 10 kHz)
Dispersion H x V120° x 90° or 90° x 120° (@ 20 kHz)


Physical specifications

System2-way, full-range
Driver LF1x AMB6.5 6.5”, vented
Driver HF1x RBN202rs 2” pro-ribbon driver
Connectors2x Speakon NL4 input/link
Physical dimensions mm                 inches
Height200                     7.9
Width450                   17.7
Depth220                    8.7
Weight (approx.)7,5 kg               16.5 lb
Warranty6 years limited
