LR14/90

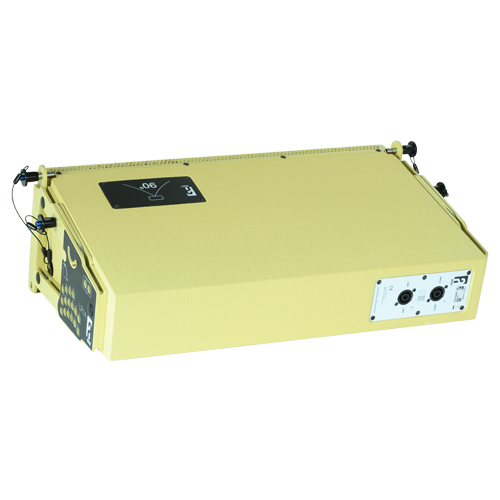

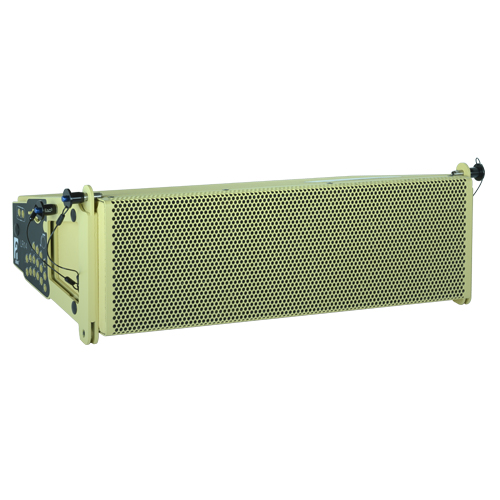

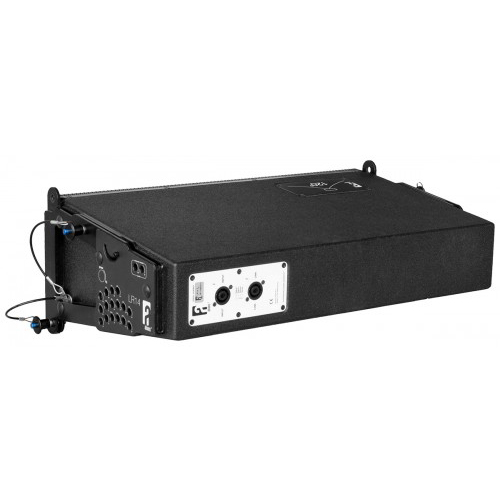

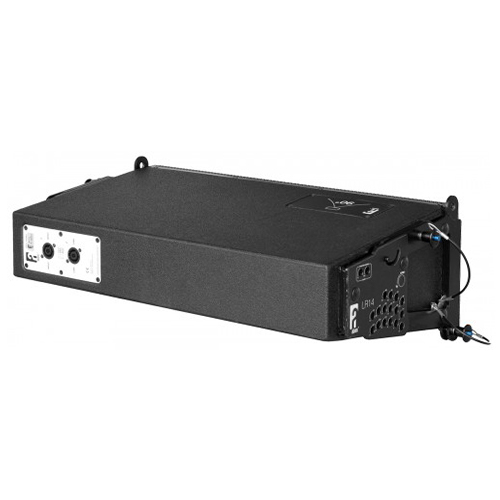

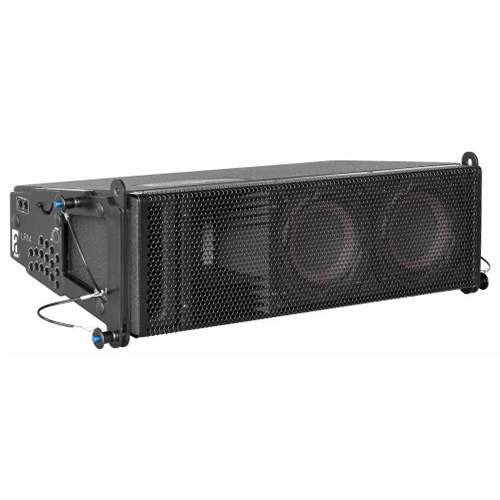

LR14/90 - ultra-compact line-array module

  • RBN401 pro-ribbon HF driver with exceptional intelligibility and "throw"
  • All Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Maximum attainable “gain-before-feedback”
  • Durotect™ scratch-resistant coating.
  • Extended headroom/SPL and protection in combination with ALC
  • Passive filtering for easy operation and economical powering

Product description

The LR14 is a passive 2-way line-source loudspeaker system. It is a true line-array system, to be used as vertical array, either in stacked or flown configuration, for both portable and permanent installations. Loaded with the RBN401 pro-ribbon driver on a “Morpher” lens (with up to 94% frontal radiation, due to the pro-ribbon’s all-natural cylindrical (Isophasic) wavefront), the system features 90° horizontal dispersion with seamless coverage. Its transient response and unusual high peak power handling (800W/200mS) caters for an amazing intelligibility and throw, while offering maximum “gainbefore- feedback” up to directly under the array.

The ultra-compact size, combined with the weight-saving all Neodymium drivers, makes the system very easy to handle.

The “Morpher” is mounted in the “ALrad™” waveguide, which utilizes the stiffness and heat transfer capabilities of aluminium. Mounted on the RBN, the ALrad™ extens the cooling surface for even further reducing power-compression for increased SPL over time.

The SignalIntegritySensing™ pre-wiring ensures complete cable/connector compensation between the LR14 and ALC. Typical (short to medium throw) applications for the LR14 include as compact main system for theatre and A/V applications. It is available in 90° and 120° configuration.

The system includes dedicated filtering, but system equalizing is done remotely (electronically) fully utilizing the individual speaker components’ power capacity. This results in increased headroom SPL.

In applications where extended bass response is required, the LR14 can be combined with a pressure-bass (LR14B) or deep-sub system (B-series), or both.

For full system performance, the LR14 needs to be driven by an ALC amplified loudspeaker controller. Driven by the ALC, the LR14 delivers maximum sound quality with inaudible (power and excursion) protection.

Dimensional drawing

Technical specifications

Frequency Response
+/- 3 dB   74 Hz-20.000 Hz
+/- 10 dB   53 Hz -
Sensitivity (SPL 1W/M)   95 dB
Sensitivity (nominal)   97 dB (200Hz.-10kHz.)
Nominal Impedance   8 ohms
Maximum RMS power   400 W
Maximum peak power   1000 W
SPL program/peak (nom.)   123/131 dB
Dispersion H x V (array)   90° x depending on array length
Dispersion H x V (single)   90° x 15°

Physical specifications

System   2-way, full-range
Filtering   passive
Drivers LF   2 x AND6.5-16 6.5", vented
Driver HF   1 x RBN401 4" ribbon driver
Cross-over frequency   1000 Hz.
Connectors   2 x Speakon NL4 input/link
Physical dimensions   mm              inches
Height   171/97         6.7/3.8
Width   575              22.6
Depth   319              12.6
Weight (approx.)   15 kg           33.1 lb
Warranty   6 years limited
