LR7B

LR7B - micro line-array bass

  • Double-tuned concentric band-pass design with high efficiency
  • Neodymium 12” driver for excellent performance-to- weight ratio
  • Ultra-compact and lightweight yet rigid cabinet construction
  • Stackable and flyable with LR7 line-array or in separate arrays
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Durotect™ impact-resistant coating

Product description

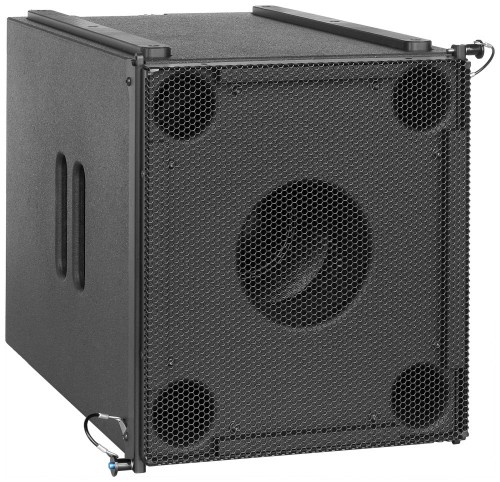

The LR7Bass is a double-tuned band-pass bass system, matching the LR7 line-array in both permanent and portable applications. Featuring a single 12” long excursion woofer with Neodymium magnet structure, the LR7B delivers high quality, high output bass response from an ultra-compact and weight efficient package. The concentric bandpass configuration offers LR7-tuned bass response in full-space (flown) and increased efficiency in half-space (stacked) applications

The extended frequency response enables the LR7B to be used as mid-bass reinforcement, full-range bass extension or subwoofer.

The integrated flying system, combines light weight with high WorkingLoadLimit and makes for a quick system set-up in combination with the LR7 line-array module.

The SIS pre-wiring ensures complete cable/connector compensation between the LR7Bass and ALC;

The LR7Bass is to be used in combination with an ALC amplified loudspeaker controller, then delivering maximum sound quality and output power with dedicated and inaudible (power and excursion!) protection.

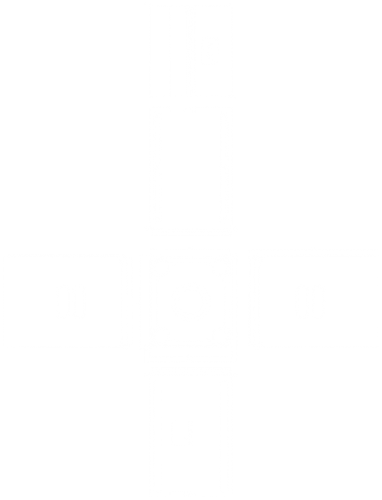

Dimensional drawing

Technical specifications

Frequency Response
+/- 3 dB   46 Hz - 200 Hz
- 10 dB   37 Hz -
Sensitivity (SPL 1W@M)   97 dB
Nominal Impedance   8 ohms
Maximum RMS power   500 W
Maximum peak power   1600 W
SPL program/peak   124/129 dB
Dispersion H x V   omni

Physical specifications

System   subwoofer, band-pass
Drivers LF   1x AW12ND-8 12”,
    double vented
Cross-over frequency HP   40 Hz recommended
Connectors   2 x Speakon NL4 input
Physical dimensions   mm            inches
Height   411             s16.2
Width   359             14,.1
Depth   564             22.2
Weight (approx.)   19 kg          41.8 lb
Warranty   6 years limited
