CRMSC-SRIW/90

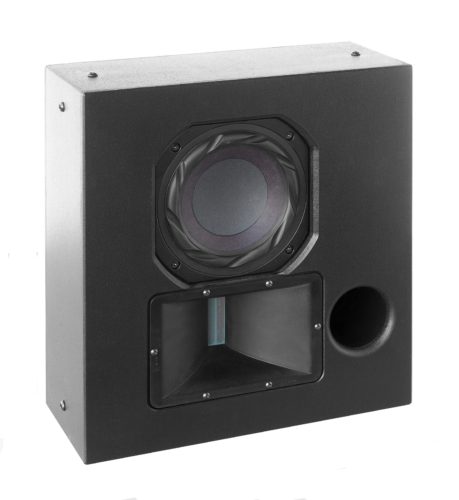

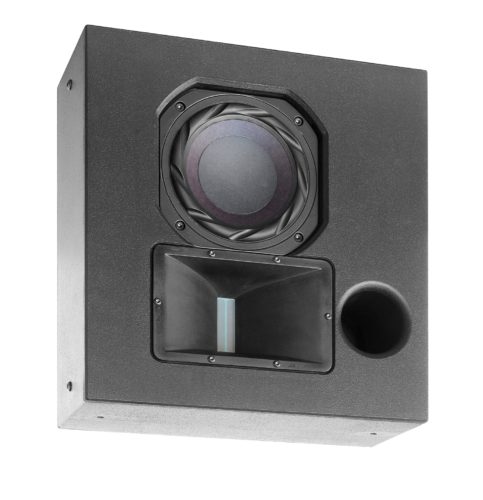

CRMSC-SRIW/90 - compact in-wall reference surround

  • RBN202 pro-ribbon HF driver, 6.5” vented Neodymium woofer
  • Signal Integrity Sensing™ pre-wired cable compensation
  • ‘Real-90’ dispersion, H 90° x V 30° (nom.)
  • Designed for flush in-wall mounting with only 15cm/5.9-in.depth
  • Choice of 2 impedance versions: 4 ohms (immersive) or 8 ohms (5.1/7.1)
  • Available in any color through the ACO™ RAL color option scheme

Product description

The CRMSC-SRIW surround is a 2-way passive-filtered full range loudspeaker, designed to meet all requirements of current and future cinema surround sound formats.
Featuring the patented Alcons pro-ribbon driver technology, the CRMSC-SRIW surround combines an exceptional clarity and intelligibility with an unusually high dynamic range, offering the most realistic sound reproduction possible.

The CRMSC-SRIW system consists of an RBN202 pro-ribbon driver for HF and a vented 6.5” mid-bass for LF reproduction. The CRMSC-SRIW HF section has an 400 W peak power input, enabling a 1:16 dynamic range with up to 90% less distortion from 1 kHz to beyond 20 kHz.
The patented horizontal dispersion of the RBN202 offers a stable coverage to a larger number of seats in the auditorium; Due to the “compression-less” principle of the pro-ribbon transducer, the system has a linear response at any SPL.

The CRMSC-SRIW is designed as matching in-wall surround system for the CRMSC system: By utilizing identical MHF components, a perfect voicing matching between screen- and surround system is realized, resulting in an exceptionally wide and uniform sound stage throughout the entire listening area.

The ultra-shallow enclosure of 150 mm / 5.9-in provides for easy, low profile in-wall mounting.

For full system performance, the CRMSC-SRIW needs to be driven by an ALC controller-amplifier, delivering maximum sound quality with increased headroom and utmost operation reliability.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the CRMSC-SRIW and ALC, significantly increasing response accuracy, regardless of cable length and system impedance, with tight and accurate mid and bass response as result.

Typical applications include in-wall surround sound system for premium Home Cinemas, high-end mix/screening rooms, quality-conscious post-production facilities and dubbing stages. As a result of Alcons’ tight manufacturing standards, all system cabinets are within “matched pair” tolerance.

Dimensional drawing

Technical specifications

Frequency response 74 Hz - 20.000 Hz (+/- 3 dB)
53 Hz (+/- 10 dB)
Sensitivity
nominal
99 dB (200 Hz – 10 kHz)
Nominal impedance 4 ohms or 8 ohms
Recommended drive Sentinel3 min., max. 3 pcs. per channel (2.7 ohms)
Nominal SPL peak 125 dB (Sentinel3 200 Hz - 10 kHz)
130 dB (Sentinel10 200 Hz - 10 kHz)
Dispersion H x V 90° x 30° (@ 20 kHz)

Physical specifications

System 2-way, full-range
Filtering passive
Driver LF 1x AMB6.5 6.5”, vented
Driver HF 1x RBN202rs 2” pro-ribbon driver
Connectors 2x Speakon NL4 input/link
Physical dimensions  mm                 inches
Height 372                   14.6
Width 350                   13.8
Depth 150                     5.9
Weight (approx.) 6,9 kg              15.2 lb
Warranty 6 years limited
