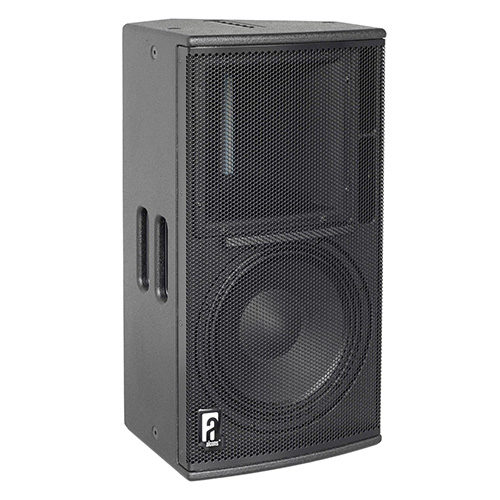

VR12/60 - mid-size versatile monitor

  • RBN601 pro-ribbon HF driver with exceptional intelligibility and high SPL output
  • 1:1 non-compressed linear sound reproduction, with up to 90% less distortion
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • All Neodymium drivers for excellent performance-to-weight ratio
  • Durotect™ coated multi-angle enclosure provides versatile deployment
  • Stand mount adapter, 6-position fly track, fixed mounting points (standard)

Product description

The VR12 is a 2-way compact multi-purpose loudspeaker, for both portable and permanent applications. Featuring the patented RBN601 pro-ribbon driver, the VR12 is ideal for applications where high output, high quality sound reinforcement is needed.

The VR12/60’s HF section contains the RBN601 with a 1000 W peak power input, enabling a 1:16 dynamic range with up to 90% less distortion from 1 kHz to beyond 20 kHz. It is mounted on a “non-revolvable” 60° x 30° wave-guide and projects with patented constant (horizontal) directivity up to 20.000Hz.

Due to the “compression-less” principle of the pro-ribbon transducer technology, the system has a fully linear response at any SPL, for an intuitive 1:1 performance.

The accompanying 12” features a Neodymium 3” voice-coil motor structure, combining a wide frequency range and high output with low power compression and a lighter weight.

For full system performance, the VR12 needs to be driven by an ALC controller-amplifier, delivering maximum sound quality with increased headroom and utmost operation reliability and flexibility.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the VR12 and ALC, significantly increasing response accuracy, regardless of cable length and system impedance, with tight and accurate mid and bass response as result.

The asymmetrical enclosure design provides for very flexible mounting (ceiling, wall) and usage.

Typical applications for the VR12 include main system for theatre, A/V, PA applications, as well as high power stage monitoring. In applications where extended bass response is required, the VR12 can be combined with a pressure-bass or deep-sub system.

The VR12 is available with a 90° x 40° (VR12/90) or 60° x 30° (VR12/60) dispersion pattern; Both models come in standard version or “i” installation version, without handle, stand mount and tilt-point. Also, both models are available as “M” version, with mirrored asymmetric cabinet and baffle configuration, for symmetrical monitor pairing.

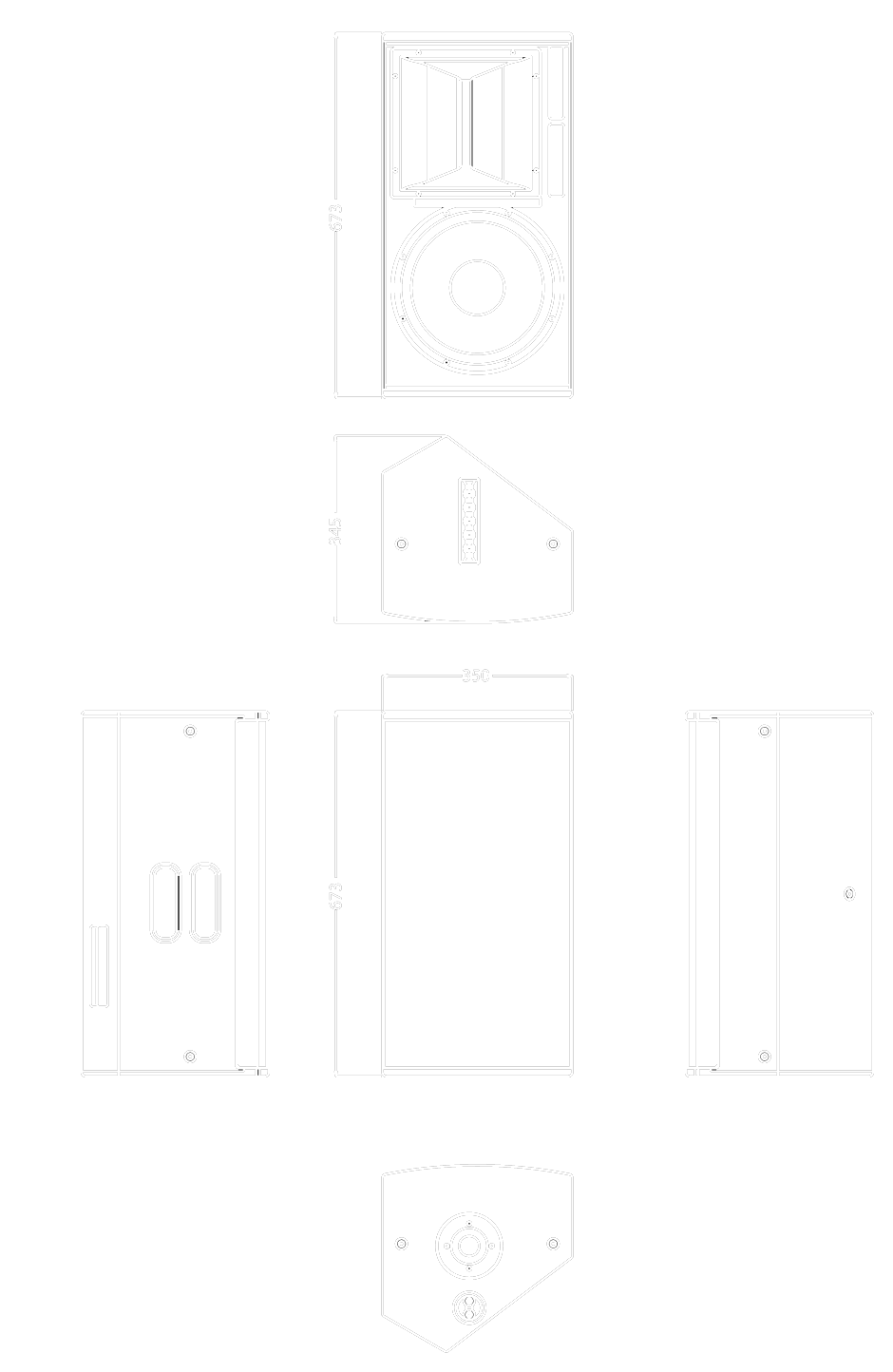

Dimensional drawing

Technical specifications

Frequency response 60 Hz – 20.000 Hz (+/- 3 dB)
50 Hz - (+/- 10 dB)
Sensitivity nominal 101 dB (200 Hz - 10 kHz)
Nominal impedance   8 ohms
Recommended drive Sentinel3 min., max. 3 pcs. per channel (2.7 ohms)
Nominal SPL peak 127 dB (Sentinel3 200 Hz - 10 kHz)
133 dB (Sentinel10 200 Hz - 10 kHz)
Dispersion H x V 60° x 30° or 30° x 60° (30° line-source)

Physical specifications

System 2-way, full-range
Filtering passive
Driver LF 1x AND12.3 12” Neodymium, vented
Driver HF 1x RBN601 6” pro-ribbon driver
Connectors 2x Speakon NL4 input/link
Physical dimensions  mm                 inches
Height 673                   26.5
Width 350                   13.8
Depth 345                   13.6
Weight (approx.) 18 kg               39.6 lb
Warranty 6 years limited
