QRP40/120

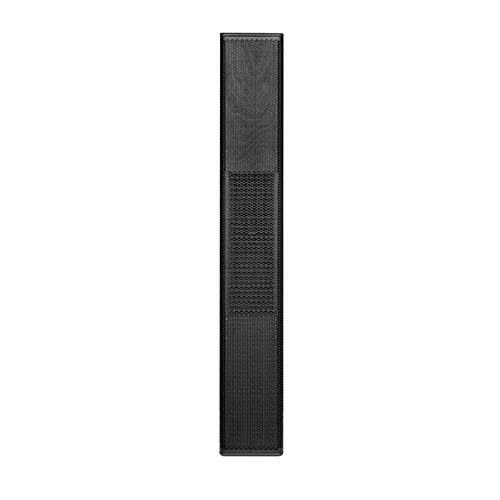

QRP40/120 - large full-range point source column

  • Point-source column with high-Q directivity for increased projection control
  • RBN1203 12" pro-ribbon HF driver with exceptional intelligibility and “throw”
  • 1:1 non-compressed linear sound reproduction, with up to 90% less distortion
  • Fully symmetric and coherent horizontal and vertical pattern control
  • Woofers with Active Coil™ technology for further reduced LMF distortion
  • Shallow form factor and ACO™ color option for unobtrusive deployment

Product description

The QRP40/120 is a 2-way column loudspeaker to be used as vertical sound system, for both permanent and portable applications. Its slim design packs a perfectly natural, dynamic sound reproduction with superb intelligibility, coverage and throw.

It is specifically designed for applications where ultimate fidelity response needs to be projected with a very precise coverage, ideal in acoustically challenging environments, or applications where intelligibility-over-distance is required.

Loaded with the RBN1203 12” / 30cm pro-ribbon driver on a “Morpher” lens, the system offers an exceptional, SPL-independent throw-efficiency and projection control, due to the pro-ribbon’s all-natural cylindrical (isophasic) wavefront. The patented 120-degrees horizontal dispersion offers a consistent audience coverage up to the highest frequencies.

Its fast impulse response, “compression-less” principle and unusual high peak power handling of (2000W @ 200ms) cater for a perfect intelligibility from the lowest to the highest SPL with a 1:15 dynamic range, while offering a maximum “gain-before-feedback”.

The RBN1203 driver is mounted in a co-axial speaker configuration with eight woofers in a sealed cabinet. The custom-design 5” woofers feature Active Coil™ technology for extremely low-distortion LF reproduction, a perfect match with the MHF pro-ribbon technology. The acoustic length assists the QRP40 in an extended vertical projection control in the low-mid frequency range, at the same time enabling a smooth but powerful roll-off to additional subwoofers.

The frequency response roll-off enables an excellent partnering with an additional subwoofer, like the QB363.

The system brings the unsurpassed clear, dynamic and ultra-low distortion Alcons signature sound in a very slim and unobtrusive package; The M10 mounting points on top and bottom and the M6 universal mounting bracket pattern on the back, together with the optional ACO™ color scheme provides for an inconspicuous, low-profile presence in any application.

The QRP40 is powered and controlled by the ALC amplified loudspeaker controller; offering QRP40-specific drive processing, delivering absolute maximum sound quality with increased headroom and utmost operation reliability and flexibility.

The QRP40 is available in two versions with 90-degree (QRP40/90) and 120-degree (QRP40/120) horizontal dispersion.

Dimensional drawing

Technical specifications

Frequency response 71 Hz - 20.000 Hz (+/- 3 dB)
62 Hz                      (+/- 10 dB)
Sensitivity nominal 102 dB (200 Hz - 10 kHz)
Nominal
impedance
4 ohms
Recommended drive Sentinel3 min.
Nominal SPL peak 130 dB (Sentinel3 200 Hz - 10 kHz)
136 dB (Sentinel10 200 Hz - 10 kHz)
Dispersion H x V 120° x 20° (@ 20 kHz)

Physical specifications

System 2-way, full-range
Filtering passive
Driver LF 8x AMB5NDAIC-16 5”, sealed
Driver HF 1x RBN1203 12” pro-ribbon driver
Connectors 2x Speakon NL4 input/link
Physical dimensions  mm                 inches
Height 1118                   44.0
Width 161                       6.3
Depth 236                      9.3
Weight (approx.) 22 kg                48.5 lb
Warranty 6 years limited
