Alcons Audio develops professional sound systems for quality-conscious clients in the cinema, installation and touring/rental industry. All products are developed and manufactured in house with traditional craftsmanship combined with the latest technologies, materials and production processes.

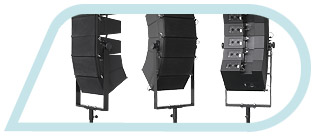

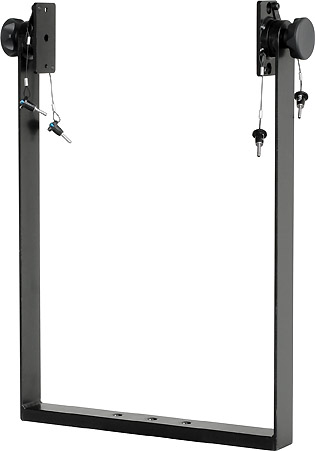

	BRK5LR7 Fork/swivel bracket for 5 units LR7, without STMT     The BRK5LR7 is a swivel yoke for a mini-array of five LR7 line-array modules. The yoke is connected to the middle cabinet with two connecting plates on the side of the cabinet, secured with two quick-release pins each. Up to five LR7 cabinets in stand-configuration and up to seven LR7 cabinets in flown configuration can be mounted, while maintaining full line-array functionality. The bracket can be fitted with an optional truss clamp, TV-spigot or STMT stand-mount adapter, with M10 bolt/nut combinations. The BRK5LR7 is certified for a safety-rating of 10:1, for seven (7) cabinets LR7.       « back to previous page
