GRD14

GRD14 - Flying grid for LR14 and LR14B

Product description

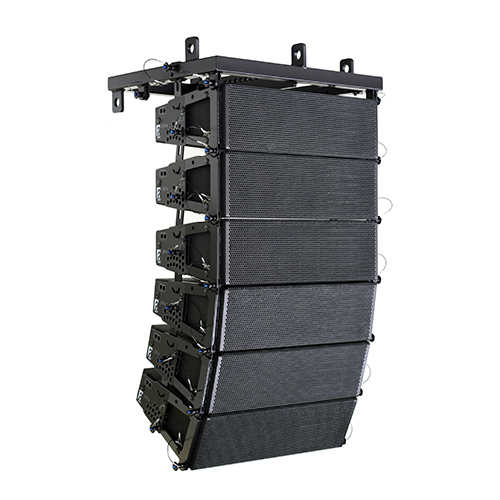

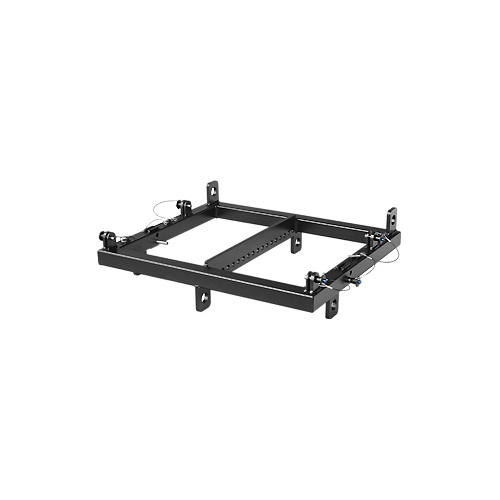

The GRD14 is the flying and stacking bumper of the LR14 line-array modules and the LR14B line-array bass modules. The grid can be suspended from the central “single pick-point” bar (ø 12mm / 0.5-in. (1T)), the optional STGD14 stepless tilt adjuster, as well as multiple mounting points (4) on the top of the grid (ø 26mm / 1-in. (6,5T)). It comes with all quick release pins required (attached to the frame).

The GRD14 has a weight of 11 kg / 24.2 lb and is certified for a safety-rating of 10:1, for twenty-four (24) cabinets LR14, or ten (10) cabinets LR14B.
