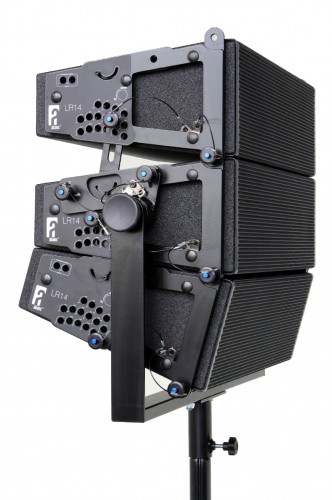

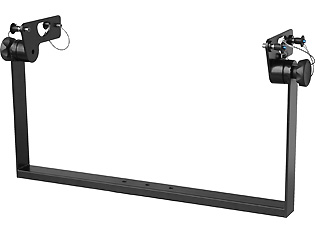

The BRK3LR14 is a swivel yoke for a mini-array of three LR14 line-array modules. The yoke is connected to the middle cabinet with two connecting plates on the side of the cabinet, secured with two quick-release pins each. Up to three LR14 cabinets in stand-configuration and up to four LR14 cabinets in flown configuration can be mounted, while maintaining full line-array functionality.
The bracket can be fitted with an optional truss clamp, TV-spigot or STMT stand-mount adapter, with M10 (2) or M12 (1) bolt/nut connection.
The BRK3LR14 is certified for a safety-rating of 10:1, for four (4) cabinets LR14.
