description

By implementing line-source technology throughout the entire system (an industry first), the normal (-6dB step) reduction of SPL coverage from front to rear is reduced; this “proximity” effect dramatically improves the cinema experience for the audience further away from the screen. The precise projection also prevents unwanted ceiling reflections.

The CR5 HF section has a 2400W peak power input, offering a 1:16 dynamic range with up to 90% less distortion from 1kHz. to beyond 20kHz. The patented Real-90 horizontal dispersion widens the stereo experience for far left and right seated audience.

The CR5 is only available with tri-amp filtering for absolute maximum system output.
The SignalIntegritySensing™ pre-wiring ensures complete (long!) cable/connector compensation between CR4 and ALC, significantly increasing response accuracy and further reducing distortion.

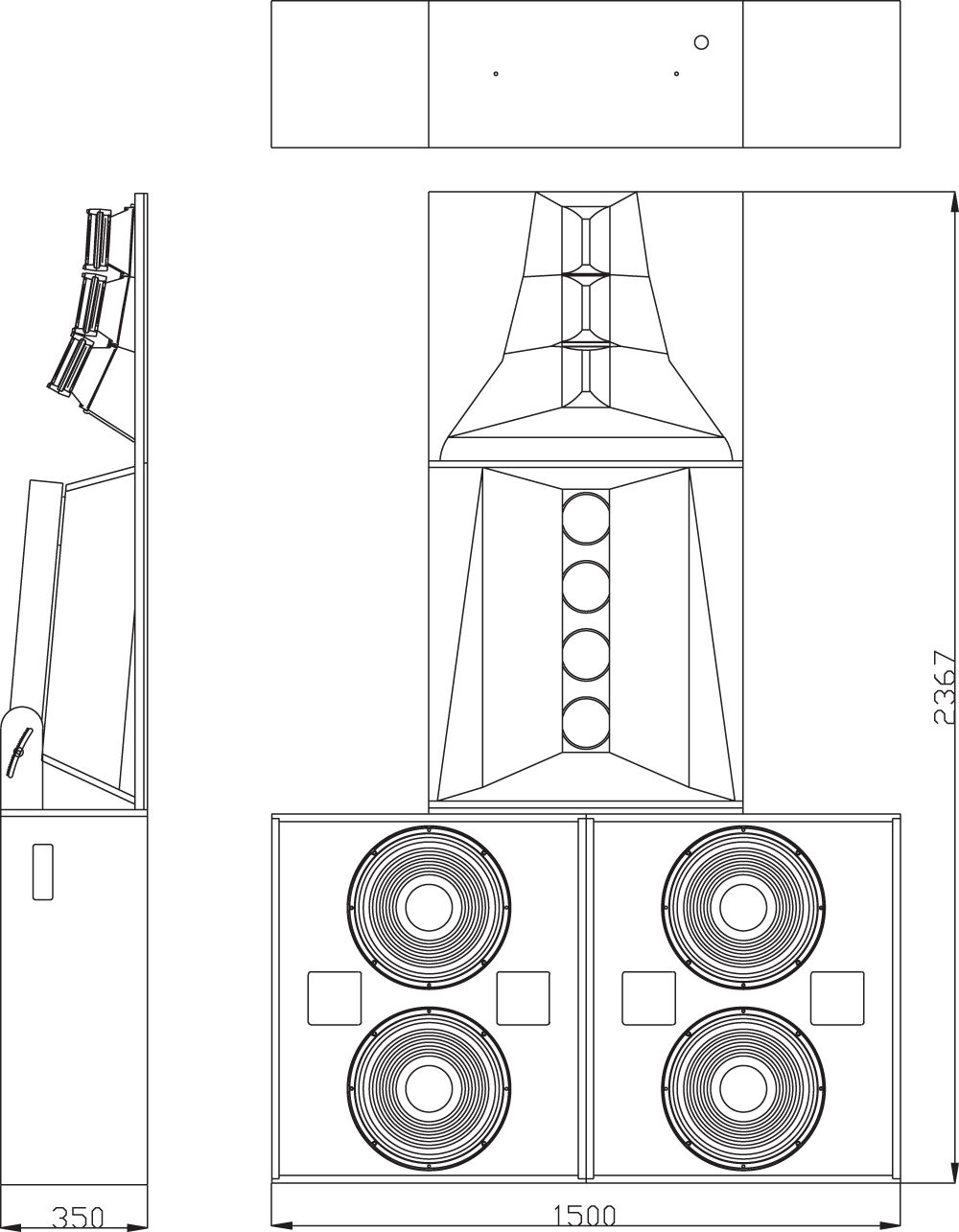

The (industry’s most) shallow enclosure design of only 35cm/13,7” provides for flexible mounting, claiming only a minimum of space behind the screen.

For full system performance, it is strongly recommend using the CR5 in combination with an ALC4 amplifier/ controller. Driven by the ALC, the CR5 delivers maximum sound quality with increased headroom under dedicated equalisation and inaudible (power and excursion) protection (SDP circuit).
