Alcons Introduces The CRMS-SRHV Surround

February, 2020

The CRMS-SRHV surround is a 2-way passive-filtered loudspeaker, designed to meet all requirements of current and future immersive surround sound formats.

Featuring the patented Alcons pro-ribbon driver technology, the CRMS-SRHV combines a benchmark-setting clarity and intelligibility with an unusually high dynamic range, offering a very realistic sound reproduction. Due to the “compression-less” principle of the pro-ribbon transducer, the system has a linear response at any SPL.

“The CRMS range is our separate group of solutions for the studio and residential markets. Following our compact immersive systems, with CRMS-SRHV, we now also have the versatile height or width channel solution for the larger studios, theatres and screening rooms.” Philip “Dr. Phil” De Haan, head of Alcons R&D.

Typical applications include (height layer) immersive surround sound systems for performing arts theaters, screening rooms, post-production facilities and dubbing stages, premium Home Cinemas and quality-conscious PLF cinemas.

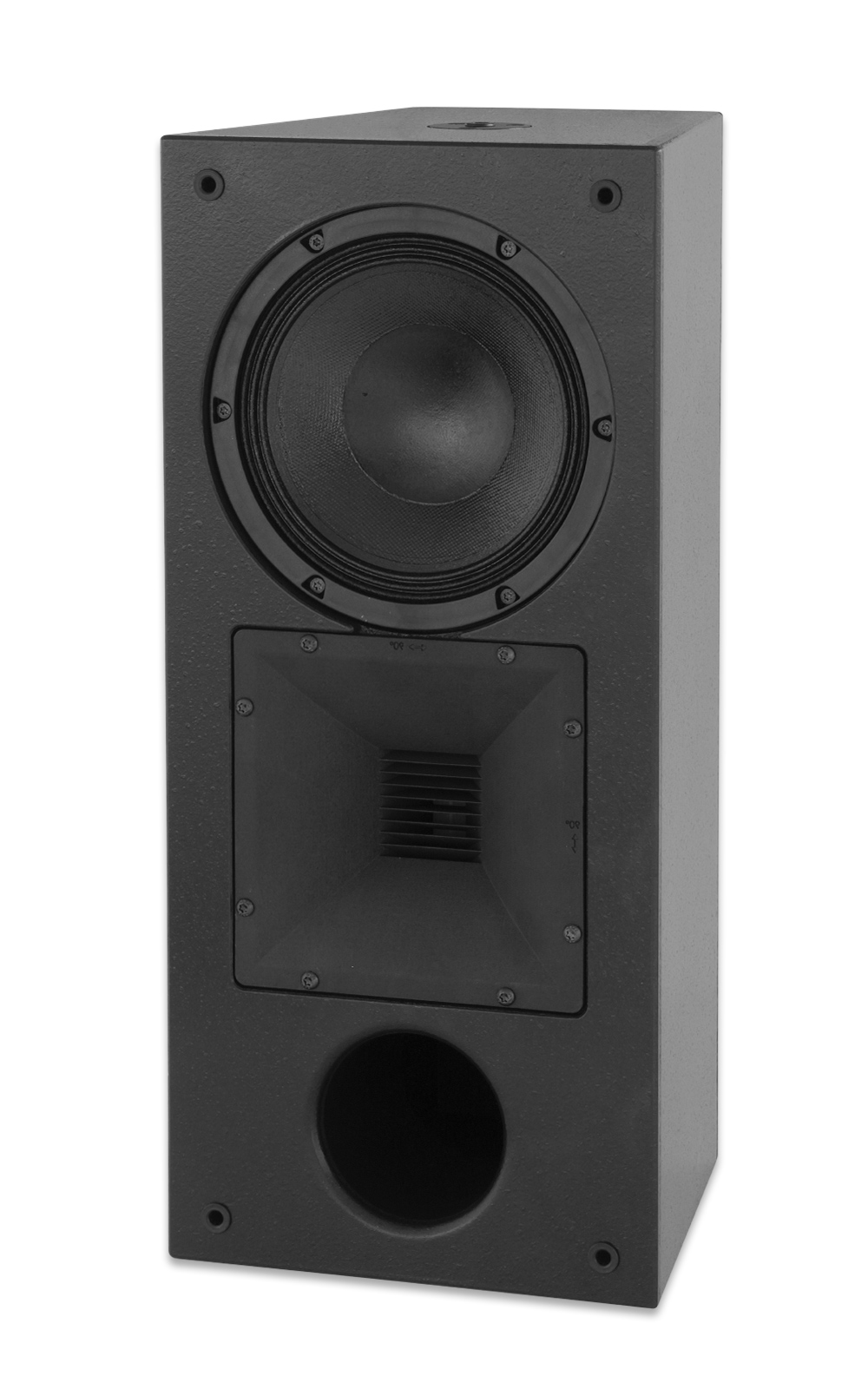

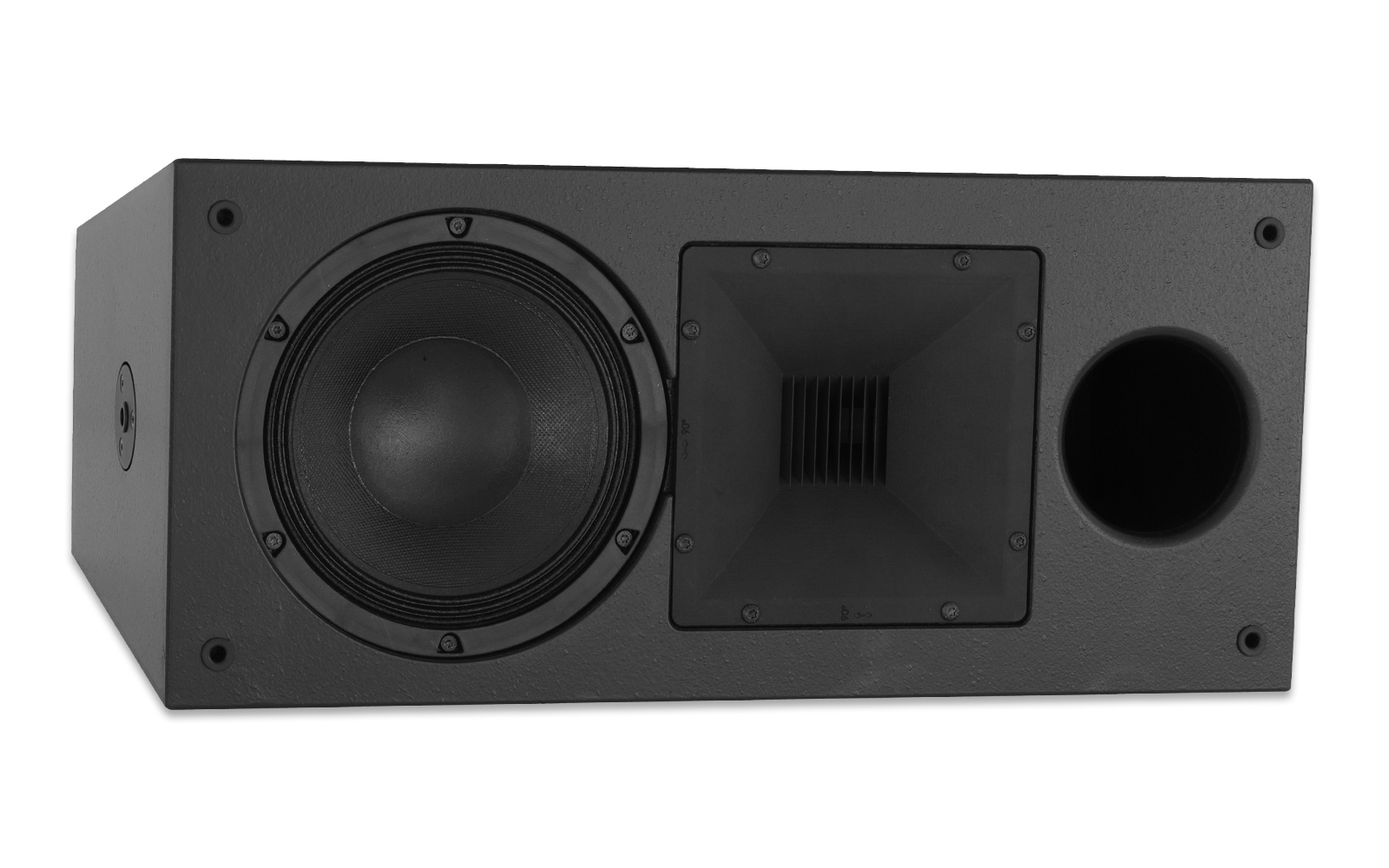

The CRMS-SRHV system consists of the RBN401 pro-ribbon driver for HF and a vented 8” mid-bass for LF reproduction. The CRMS-SRHV/9090 HF section has an 800 W peak power input, enabling a 1:15 dynamic range with up to 90% less distortion from 1 kHz to beyond 20 kHz.

The patented (90-degrees) horizontal and patent-pending (90-degrees) vertical dispersion offers a very wide and consistent coverage up to the highest frequencies; By utilizing identical MHF components, a perfect voicing matching between screen- and surround system is realized, resulting in an exceptionally wide and uniform sound stage throughout the entire listening area.

The trapezoidal enclosure together with the optional grill and ACO™ color option, provides for easy, low profile wall or ceiling mounting.

For full system performance, the CRMS-SRHV needs to be driven by an ALC controller-amplifier, delivering maximum sound quality with increased headroom and utmost operation reliability. The system is available in 8 ohms and 4 ohms version, for maximum amplifier efficiency in individually-amplified immersive surround systems.

The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the CRMS-SRHV and ALC, significantly increasing response accuracy, regardless of cable length and system impedance, with tight and accurate mid and bass response as result.

Philip “Dr. Phil” De Haan, head of Alcons R&D: “The CRMS range is our separate group of solutions for the studio and residential markets. Following our compact immersive systems, with CRMS-SRHV, we now also have the versatile height or width channel solution for the larger studios, theatres and screening rooms.”

The RBN401 is Alcons Audio’s most-applied pro-ribbon driver, with thousands in daily use in professional higher SPL applications.

Phil continues: “As we continue to upscale the possibilities of our patent-pending waveguide technology, we have optimized the 4” RBN401 to bring the wide 90° x 90° dispersion into the CRMS range, while utilising the exact same transducers for a perfect voicing-match throughout the CRMS family. We have already received very positive feedback from the first critical listening applications that deployed the system.”

The CRMS-SRHV/9090 will see its official launch at the upcoming ISE show at the Alcons Pro-Ribbon Immersive Experience, in Amsterdam the Netherlands.
