technical specifications CR2

      general


  • RBN601 pro-ribbon HF driver with exceptional intelligibility and high SPL output
  • Ultra-shallow enclosure (25cm/10”) for space economic mounting
  • Extended headroom/SPL and protection in combination with SDP modules (with ALC)
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Dispersion H 90° x V 40°
  • Double baffle board with flush mount transducers
  • Single-amp or bi-amp operation for economical powering

      description

  The CR2 is a 3-way sound system, designed to meet all requirements (and more!) of all current and future (digital) cinema sound formats. Featuring the RBN601 ribbon driver (patents pending), two 8” mid-range drivers and a 15” woofer, the CR2 is ideal for applications where medium output, high quality cinema sound reproduction is needed. It is recommended for 100-300 seat theatres.

The system includes dedicated MF/HF filtering, with external system equalizing (electronically) fully utilizing the individual speaker components’ power to Alcons Audio continuous R&D, all specifications are subject to change without prior notice. capacity. This results in dramatically increased headroom SPL. The SIS pre-wiring ensures complete (long!) cable/connector compensation between CR 2 and ALC, significantly increasing response accuracy.

The ultra-shallow enclosure design provides for very flexible mounting in even the smallest spaces behind the screen. The shape also enables semi-flush wallmounting.

For full system performance, we strongly recommend using the CR2 in combination with an ALC2 (or ALC4) amplifier/controller. Driven by the ALC, the CR2 delivers maximum sound quality with increased headroom under dedicated equalisation and inaudible (power and excursion) protection (SDP circuit).


  technical specifications   physical specifications

Frequency Response
+/- 3 dB   41 Hz - 20.000 Hz
+/- 10 dB   32 Hz
Sensitivity (SPL 1W/M)   LF 98 dB
    MF/HF 98 dB
Sensitivity nominal   LF 98 dB
    MF/HF 98 dB
Nominal Impedance   LF 4 ohms
    MF/HF 4 ohms
Maximum RMS / peak LF   450 / 1500 watts
MF/HF   560 / 1600 watts
SPL program/peak LF   124,5 / 130 dB
MF   127 / 132dB
HF   127 / 132 dB
Dispersion H x V   90° x 40° (nom.)

System 3-way, full-range
Filtering   LF active, MF/HF passive
Drivers LF   1 x AW15.3 15”, vented
Drivers MF   2 x AMB8 8"
Drivers HF   1 x RBN601 6”
    pro-ribbon driver
Cross-over frequencies   270 Hz / 1300 Hz
Connectors   2 x Speakon NL4 input

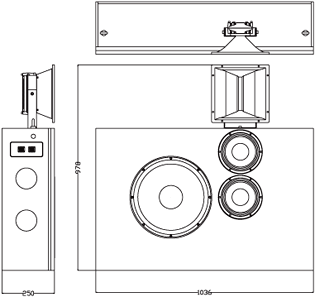

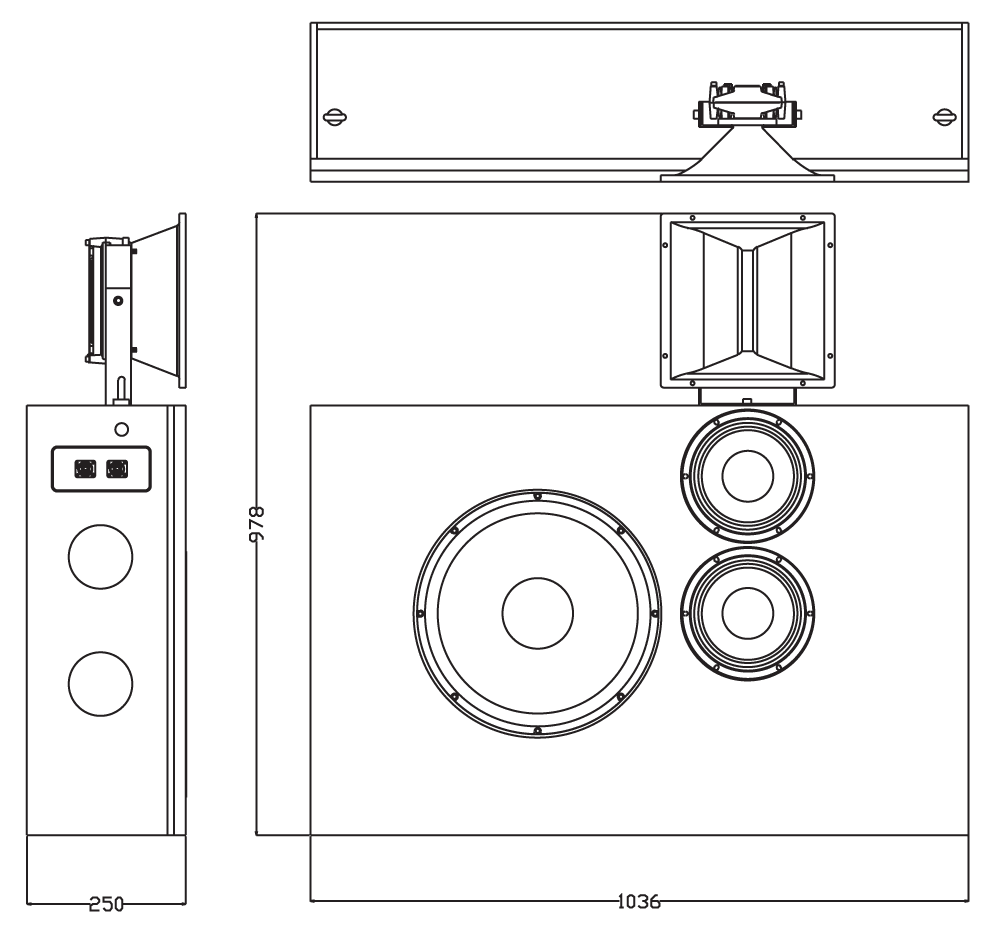

Physical dimensions   mm            in
Height   978            38,5
Width   1036          40,8
Depth   250            9,8
Weight (approx.)   62 kg         (136,7 lb)
Warranty   6 years limited
