  technical specifications LR7B

The LR7, LR14 and the LR16 are the main components of The Ribbon line-array systems. For more information on the line-arrays and The Ribbon Network, click here

      general

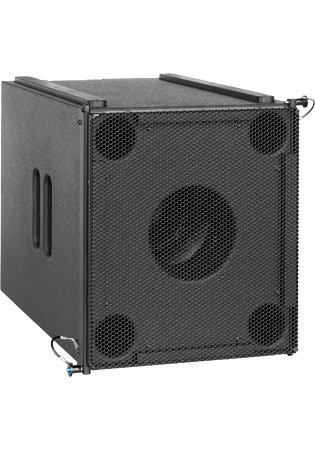

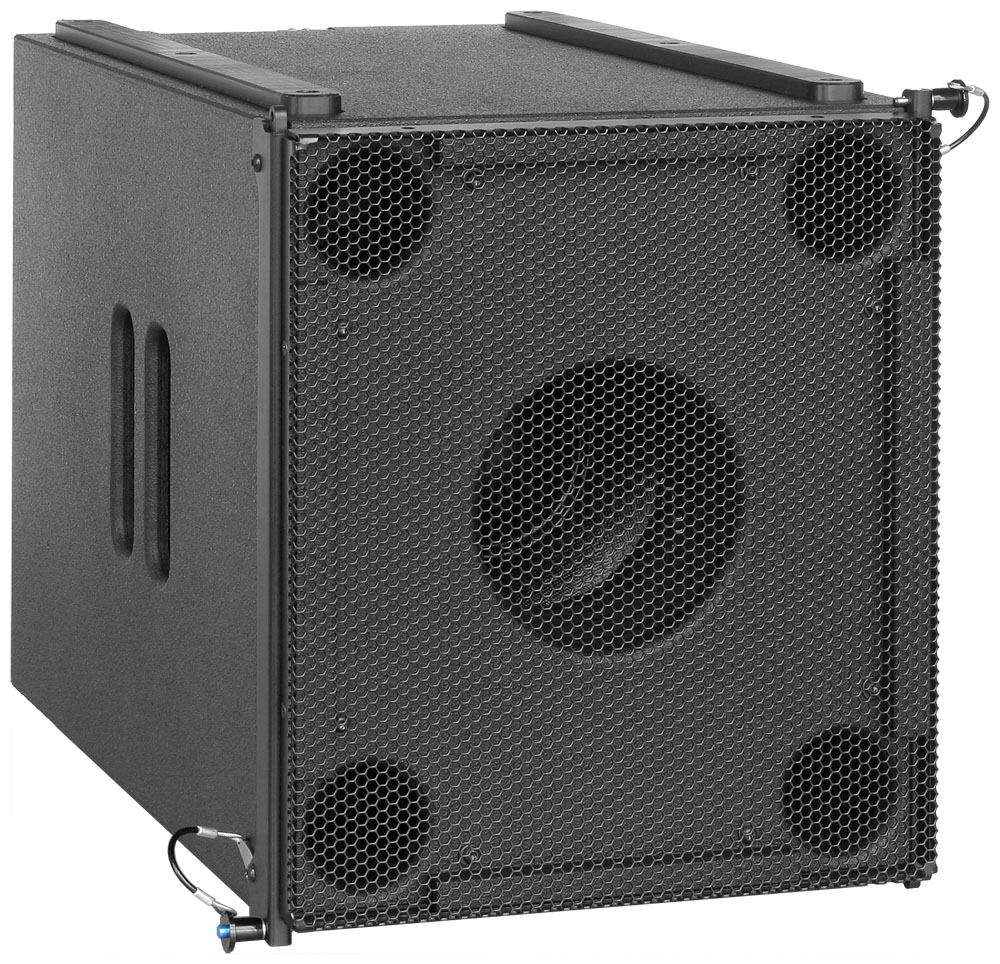

  LR7B

LR7B dimensional drawing


  • Double-tuned concentric band-pass design with high efficiency
  • Neodymium 12” driver for excellent performanceto- weight ratio
  • Ultra-compact and lightweight yet rigid cabinet construction
  • Stackable and flyable with LR7 line-array or in separate arrays
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Durotect™ impact-resistant coating




description

The LR7Bass is a double-tuned band-pass bass system, matching the LR7 line-array in both permanent and portable applications. Featuring a single 12” long excursion woofer with Neodymium magnet structure, the LR7B delivers high quality, high output bass response from an ultra-compact and weight efficient package. The concentric bandpass configuration offers LR7-tuned bass response in full-space (flown) and increased efficiency in half-space (stacked) applications

The extended frequency response enables the LR7B to be used as mid-bass reinforcement, full-range bass extension or subwoofer.

The integrated flying system, combines light weight with high WorkingLoadLimit and makes for a quick system set-up in combination with the LR7 line-array module.

The LR7Bass features an integrated top hat, enabling a stand-mounted “top/sub” combination together with 3 units LR7 on the BRK3LR7 bracket (option). The SIS pre-wiring ensures complete cable/connector compensation between the LR7Bass and ALC;

The LR7Bass is to be used in combination with an ALC2 or ALC4 amplifier/controller, then delivering maximum sound quality and output power with dedicated and inaudible (power and excursion!) protection (SDP circuit).


  technical specifications   physical specifications

Frequency Response
+/- 3 dB   46 Hz - 200 Hz
- 10 dB   37 Hz -
Sensitivity (SPL 1W@M)   97 dB
Nominal Impedance   8 ohms
Maximum RMS power   500 W
Maximum peak power   1600 W
SPL program/peak   124/129 dB
Dispersion H x V   omni

System subwoofer, band-pass
Drivers LF   1 x AW12.3ND 12”,
    double vented
Cross-over frequency HP   40 Hz recommended
Connectors   2 x Speakon NL4 input
Physical dimensions   mm            inches
Height   411             s16.2
Width   359             14,.1
Depth   564             22.2
Weight (approx.)   19 kg            (41.8 lb)
Warranty   6 years limited
