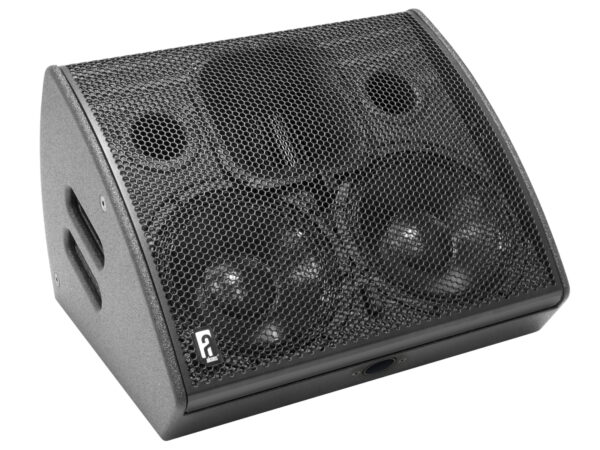

WR20

High-performance stage monitor

WR20

High-performance stage monitor

  • 1:1 non-compressed linear sound reproduction, with up to 90% less distortion
  • Unique fully symmetric and coherent horizontal and vertical pattern control
  • Ultra-robust multiple-patented pro-ribbon transducer technology
  • Next-gen woofers with Active Coil™ technology for further reduced LMF distortion
  • Compact footprint with excellent performance-to-weight ratio
  • Integrated Eco system with processing & amplification, rigging & transportation

The WR20 is a 2-way high performance stage monitor sound system, combining the highest sound quality with very high SPL capabilities in a compact and unobtrusive form factor. It brings Alcons’ well-recognized sonic signature sound to live-sound monitoring applications.

The system was designed to obtain a 1:1 reproduction of the original sound source with a completely neutral response. The objective was to create the best reference for a perfect performance, regardless of the application; from intelligible speech, to delicate classical music and jazz, up to balls-to-the-wall pop and rock performances. In any acoustical environment.

Being the first Alcons dedicated stage monitor ever, the latest proprietary technologies and developments have been included, such as; pro-ribbon mid-high frequency driver, Active-Coil™ low-mid frequency transducer technology, VelocityVent™ venting, VHIR™ -processing, a.o.

Sharing these technologies with other Alcons sound systems, offers one single, scalable audio reference from recording to mastering to playback and large-scale delivery, for any type of source material and in any size of application: One reference; One experience.

The power behind the glory

The best reference through the pro-ribbon transducer

Focal point of the WR20 system is the pro-ribbon transducer; By implementing Alcons’ proprietary pro-ribbon transducer technology for the reproduction of mid and high frequencies, an ultra-low distortion is combined with a very high dynamic range.

This technology is the real-world alternative for any mid-high frequency transducer. The RBN pro-ribbon mid-high frequency drivers reproduce the original sound without adding any coloration or distortion. Input = output, just louder!

The R&D team of Alcons Audio, led by Philip “Dr. Phil” de Haan, has a 30+ year background in the research and development of pro-ribbon transducer technology; This has resulted in numerous patents and pending-patents, through which Alcons Audio can be seen as leader in this technology.

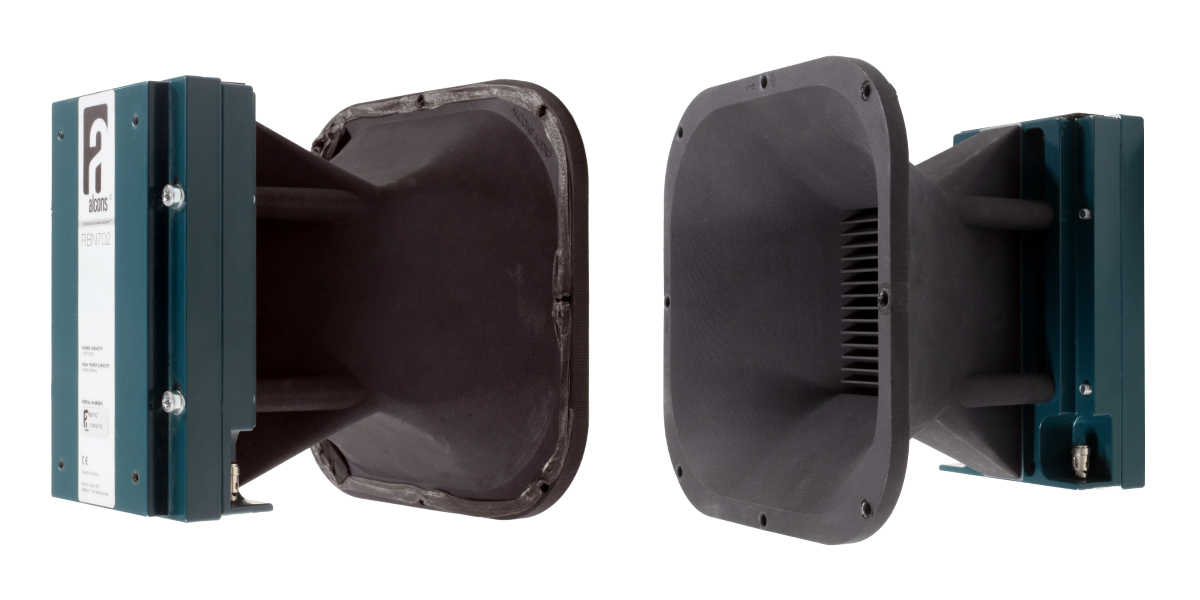

7" tall RBN702rs pro-ribbon driver

Unique ultra-low distortion 1:1 sound reproduction

The Alcons RBN702rs pro-ribbon driver features a wide-band operating range from 1 kHz to 20 kHz, making it the perfect transducer solution in the 2-way stage monitor design of the WR20.

Due to the lack of a compression chamber and the light weight diaphragm, the pro-ribbons have up-to-90% less distortion than any conventional mid/high transducer, resulting in a perfect speech intelligibility, without any time-smear-induced listening fatigue.

Maximum gain-before-feedback

The very-fast impulse response of Alcons’ pro-ribbon technology, in combination with the driver’s flat frequency response, caters for a 3 to 6 dB higher gain-before-feedback, even with the most sensitive microphones. Without the need for steep tonal corrections, the original signal remains intact, as it was intended.

alcons-diagram-industry-reference-compression-driver-

Industry reference

RBN502E_1280_

Alcons RBN702 Pro-Ribbon

Virtually “infinite” dynamic headroom

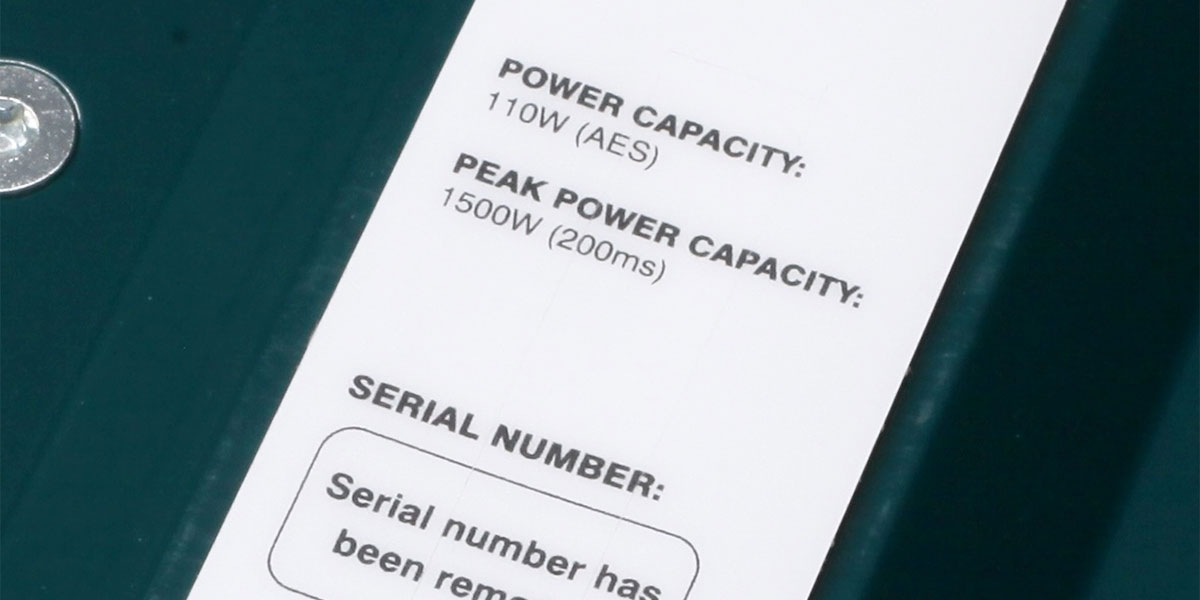

The pro-ribbon’s 7” voice-coil has a massive true power handling of 1500W (200msec = 10x AES standard) with a 1:15 RMS-to-peak ratio; This results in a unique dynamic headroom reserve, even under the highest outputs.

It combines the power to cut through the noise, with the elegance to reveal even the finest detail.

2024-Alcons-Audio-WR20-zoom-RBN702-1200

Superb directivity control

The multiple-patented (H 45 x V 60-degrees) dispersion of the RBN702 offers a very controlled and consistent projection up to the highest frequencies. Mounted in a symmetrical tight-pack configuration with the two woofers, the projection control is extended down to the lower frequencies, while maintaining a relative small footprint.

WR20 'under the hood'

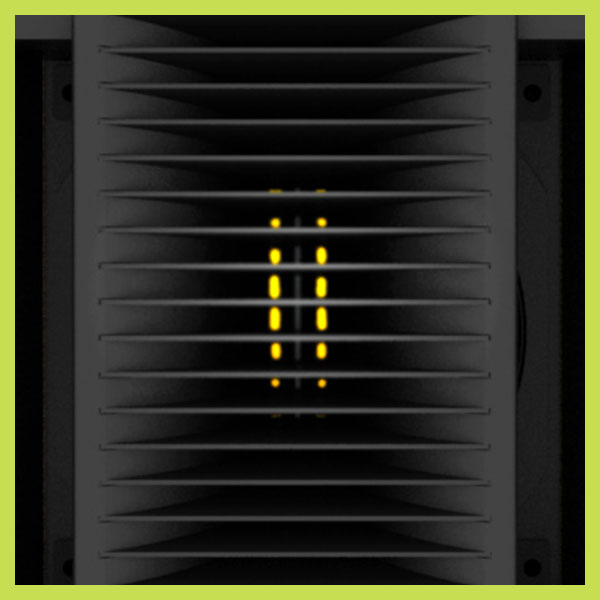

2024-WR20-7in-pro-ribbon-neo-HF-driver-600

Multiple-patented 7" pro-ribbon Neo HF driver with 7" voice-coil and 1500W peak power handling

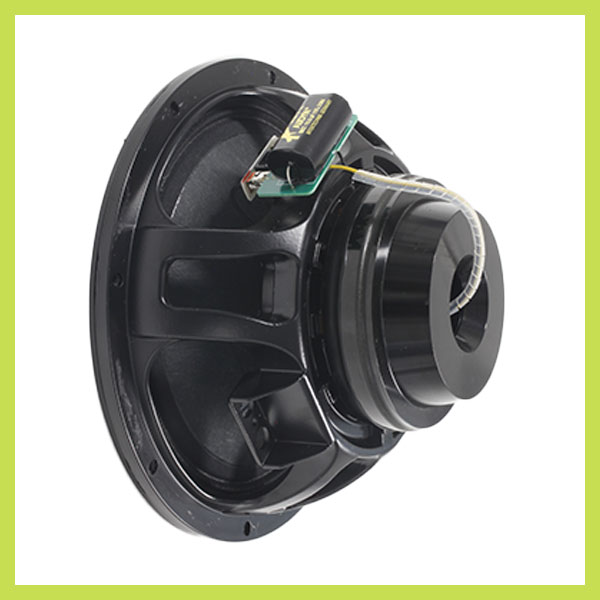

2024-WR20-10in-neo-LF-driver-600

Double 10" high efficiency Neo LF drivers with Active Coil™ motors, for ultra-low distortion

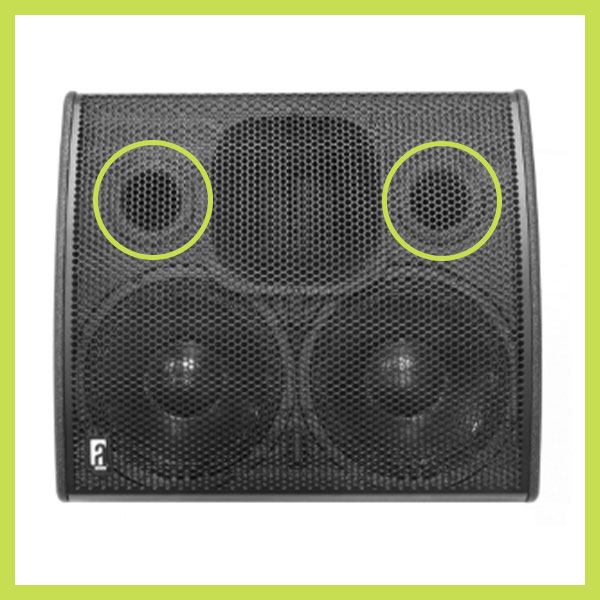

2024-WR20-velocity-vent-circle-600

VelocityVent™ woofer loading for optimised breathing and a usable LF response down to 44Hz

2024-WR20-Filter-600

Passive-filtered for simpler infrastructure and economical powering while guaranteeing maximum output

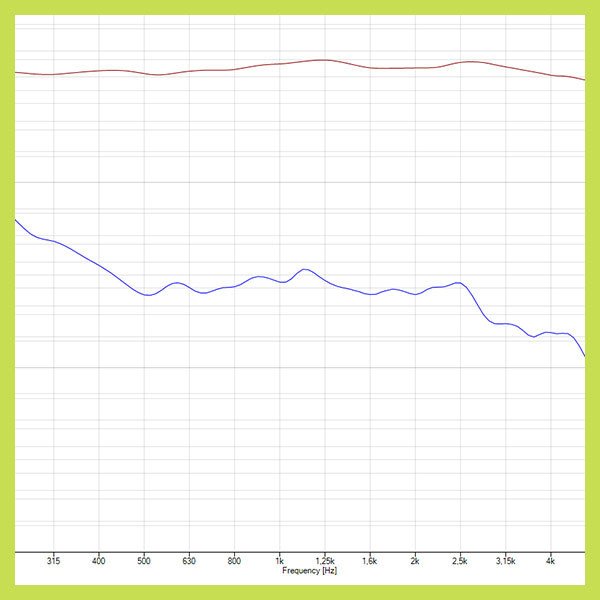

2024-WR20-phase-response-temp-600

VHIR™ processing provides for a flat phase response with ultimate fidelity and low latency

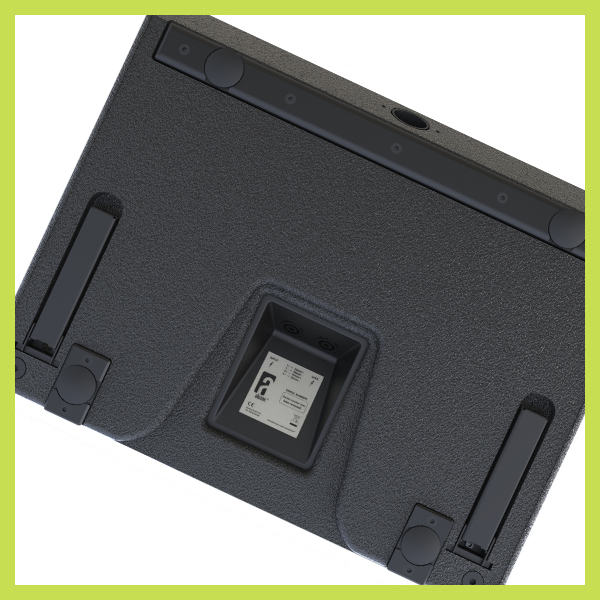

2024-WR20-leg-risers-600

Flexible positioning options for optimal projection and increased return-on-investment

WR20 system and peripherals

An integrated system approach, not just assembled parts

The WR20 is part of a complete eco system with a dedicated power and processing platform with ALControl™ remote-control, power-, signal- and transport logistics, high-resolution ARC™ 3D-simulation software and a choice of different optional subwoofer systems.

WR20
High output stage monitor

The WR20 is a 2-way passive filtered high performance stage monitor sound system. lt contains the RBN702rsr pro-ribbon transducer for mid and high frequencies and double 10" for the low/mid frequencies with VelocityVent™ loading. The system has a horizontal dispersion of 45-degree and a vertical dispersion of 60-degree.

Sentinel10
Amplified loudspeaker controller

The Sentinel is the “engine” for the WR20 system; A 4-in/4-out dedicated and upgradeable DSP drive processor, with 192kHz capable AES3 inputs, touch screen and multi-color encoder control and 4 audiophile amplifier stages totaling more than 10kW of output power. Signal Integrity Sensing™ dynamic cable-length compensation, auto-redundant power supplies, modular amp/SMPS design.

ALControl™
Remote control software

ALControl™ is Alcons’ proprietary ALC software program, to control and monitor individual or multiples of Sentinel amplified loudspeaker controllers, that can be accessed from anywhere within a network. Features include off-line, pre-production configuration, auto-detect, extensive monitoring and control options and auto-update.

ARC™
Simulation software

ARC™ (Alcons Ribbon Calculator) is the GLL-based simulation software for the Alcons array systems. Based on actual system measurement output data, the high measurement resolution (up to 1-degree accuracy) offers horizontal + vertical modelling, turning the WR20 into a true precision tool.

WR20 Specifications

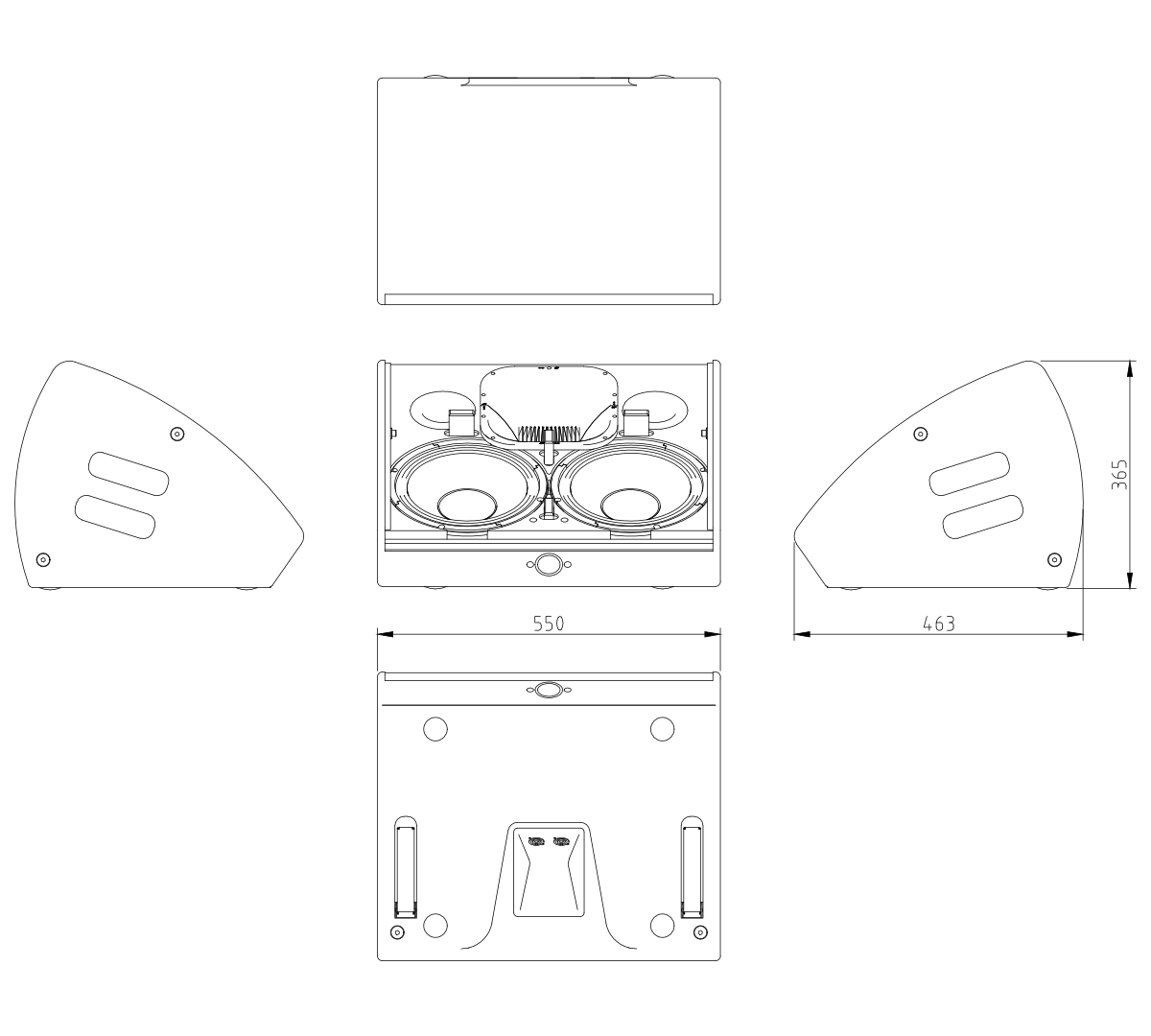

Dimensional drawing

Technical specifications

Frequency response: 51 Hz - 20.000 Hz (+/- 3 dB)
44 Hz - (+/-10 dB)
Sensitivity nominal: 105 dB (200 Hz - 10 kHz)
Nominal impedance: 8 ohms
Recommended drive: Sentinel3 min.
Nominal SPL peak: 131 dB (Sentinel3 200 Hz - 10 kHz)
137 dB (Sentinel10 200 Hz - 10 kHz)
Dispersion H x V (single) 45° x 60° (@20kHz)


Physical specifications

System: 2-way, full-range
Filtering: passive
Drivers LF: 2x AMB10NDAIC-4 10”, vented
Drivers HF: 1x RBN702rs 7” pro-ribbon driver
Connectors: 2x Speakon NL4 input/link
Physical dimensions:      mm              inches
Height:      365                14.4
Width:      550                21.7
Depth:      463                18.2
Weight:     26 kg            57.3 lb
Warranty: 6 years limited



Due to Alcons Audio continuous R&D, all specifications are subject to change, without prior notice.
