technical specifications LR7


Production Partner 2/2010: '...every test was passed with flying colours and we can really say that the LR7 is a pure delight with both lab tests and listening impression being highly convincing...'

Production Partner LR7 test/review (3Mb)


The LR7, LR14 and the LR16 are the main components of The Ribbon line-array systems. For more information on the line-arrays and The Ribbon Network, click here

      general









LR7



  • RBN401 pro-ribbon HF driver with exceptional intelligibility and “throw”
  • All Neodymium drivers for excellent performanceto- weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Maximum attainable “gain-before-feedback”
  • Durotect™ scratch-resistant coating
  • Extended headroom/SPL and protection in combination with SDP circuit (in ALC)
  • Passive filtering for easy operation and economical powering




description

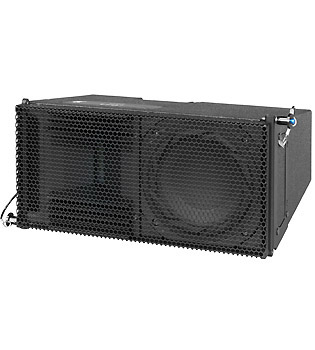

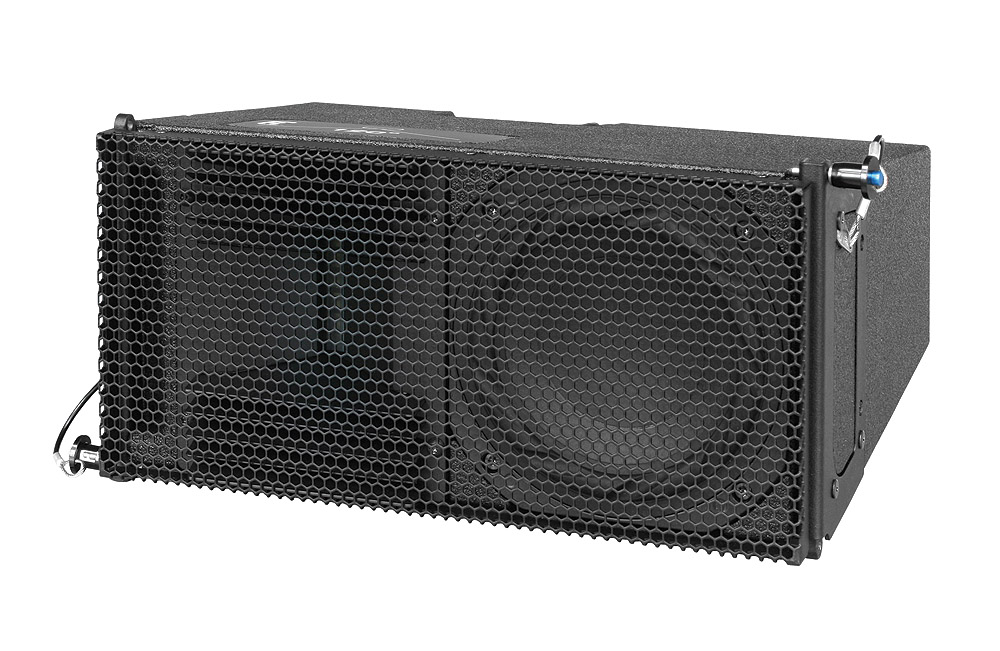

The LR7 is a passive 2-way line-source loudspeaker system. It is a true line-array system, to be used as vertical array, either in stacked or flown configuration, for both portable and permanent installations. Loaded with the RBN401 pro-ribbon driver on a “Morpher” lens (up to 94% frontal radiation!), the system features 120° dispersion with seamless coverage, due to the ribbon’s all-natural cylindrical (Isophasic) wavefront. Its transient response and unusual high peak power handling (800W/200mS) caters for an amazing intelligibility and throw, while offering maximum “gain-before-feedback” up to directly under the array.

The micro-sized design, combined with the weightsaving all Neodymium drivers, makes the system very easy to handle.

The “Morpher” is mounted in the “ALrad™” waveguide, which utilizes the stiffness and heat transfer capabilities of aluminium. Mounted on the RBN, the ALrad™ extends the cooling surface for even further reducing powercompression for increased SPL over time.

The SignalIntegritySensing™ pre-wiring ensures complete cable/connector compensation between the LR7 and ALC. Typical (short to medium throw) applications for the LR7 include as compact main system for theatre, A/V or corporate events where minimal sightline obstruction is required, with exceptional sound reproduction. It is available in 90° and 120° configuration.

In applications where extended bass response is required, the LR7 can be combined with a pressurebass or deep-sub system

For full system performance, we recommend using the LR7 in combination with an ALC amplifier/controller. Driven by the ALC, the LR7 delivers maximum sound quality with inaudible (power and excursion) protection (SDP circuit). All LR7 system presets are included in the library of the Digital Drive Processor™; with which also array-length and positioning (stacked/flown) can be adjusted.

More system application information can be found on www.theribbonnetwork.net


  technical specifications   physical specifications

Frequency Response
+/- 3 dB   74 Hz - 20.000 Hz
+/- 10 dB   53 Hz -
Sensitivity (SPL 1W/M)   92 dB
Sensitivity (nominal)   96 dB (200Hz. – 10kHz.)
Nominal Impedance   16 ohms
Maximum RMS power   200 W
Maximum peak power   800 W
SPL program/peak (nom.)   119dB / 124dB
Dispersion H x V (array)   120° x depending on
    array length
Dispersion H x V (single)   120° x 15°

System 2-way, full-range
Filtering   passive
Drivers LF   1 x AND6.5/16 6.5”, vented
Driver HF   1 x RBN401 4” pro ribbon driver
Cross-over frequency   1000 Hz.
Connectors   2 x Speakon NL4 input / link
Physical dimensions   mm            inches
Height   173/108      6,9/4,3
Width   359             14,1
Depth   273             10,7
Weight (approx.)   8 kg            (17,6 lb)
Warranty   6 years limited
