QR24HSTBR

QR24HSTBR - Hoist bar for flying QR/QM24

Product description

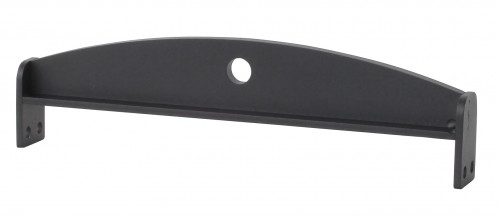

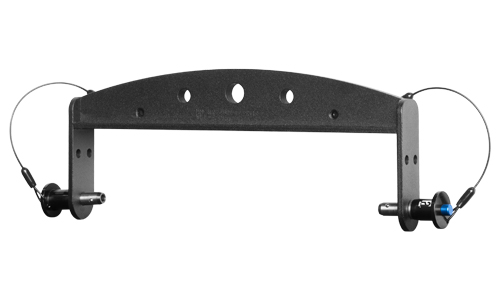

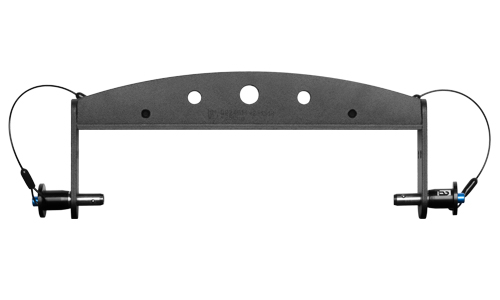

The QR24HSTBR is a hoist bar for flying arrays of QR24 and QM24. The bar is connected to the top cabinet with four M6 bolts, 2 on each side of the cabinet; Or with the two quick release pins, one on each side.

The bar has a 14mm/0.55-in centrally-positioned hole to facilitate a 1.5T shackle, as well as two smaller holes, left and right, of 9,5mm/0.37-in to facilitate a 0.5T shackle.

The QR24HSTBR is certified for a safety-rating of 10:1, for 11 cabinets QR24 or 14 cabinets QM24.
