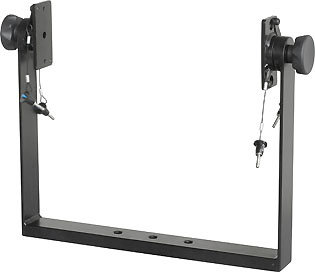

BRK3LR7 Fork/swivel bracket for 3 units LR7, without STMT




LR7

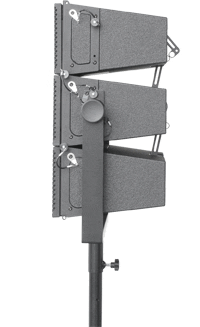

The BRK3LR7 is a swivel yoke for a mini-array of three LR7 line-array modules. The yoke is connected to the middle cabinet with two connecting plates on the side of the cabinet, secured with two quick-release pins each. Up to three LR7 cabinets in stand-configuration and up to four LR7 cabinets in flown configuration can be mounted, while maintaining full line-array functionality.

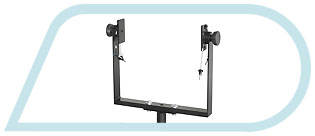

The bracket can be fitted with an optional truss clamp, TV-spigot or STMT stand-mount adapter, with M10 bolt/nut combinations. The BRK3LR7 is certified for a safety-rating of 10:1, for four (4) cabinets LR7.

« back to previous page










downloads

  » BRK3LR7 dwg (3D)
