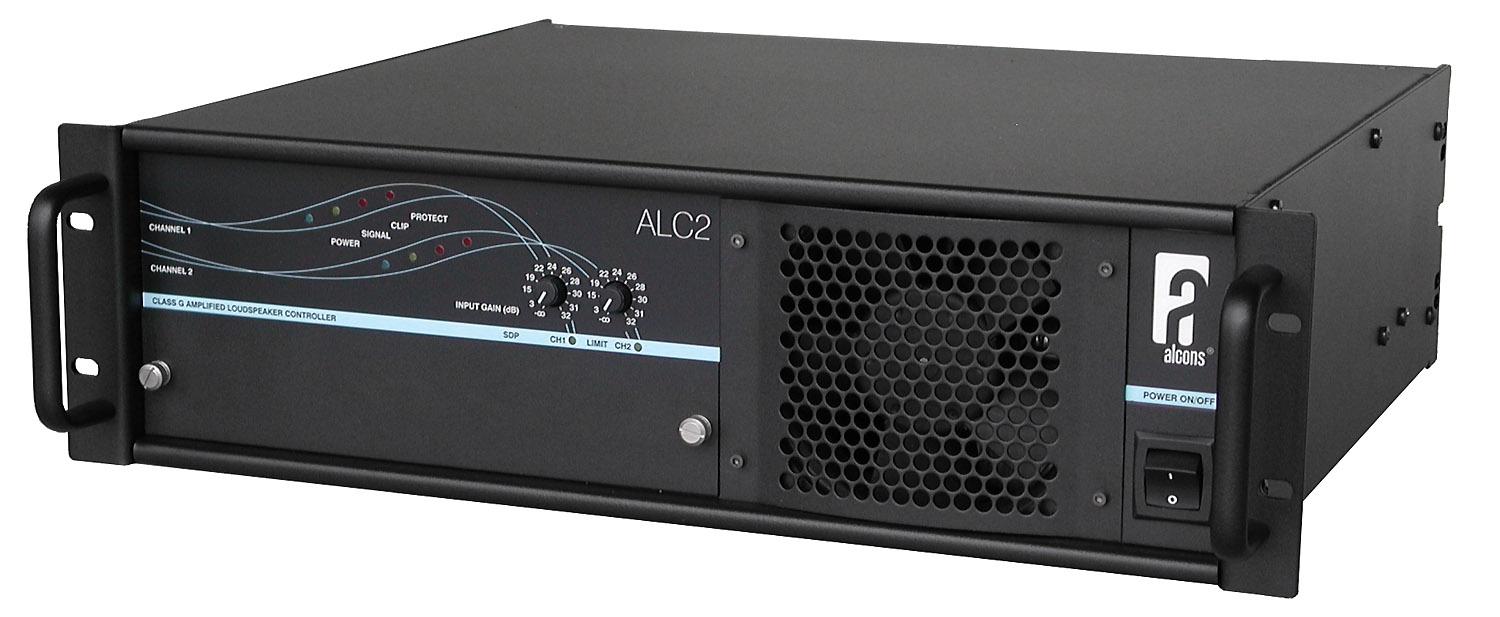

| technical specifications ALC2 & ALC2-ST |
|
|
| |
|
|
|
| |
|
|
ALC
series comparison chart » |
| |
|
|
|
| |
|
|
general |
 |
 |
 |
 |
 |
 |
| |

 |
|
|
| |
|
|
|
| |
|
|
SDP Speaker Drive Processor |
 |
 |
  |
 |
 |
 |
| |
|
|
The SDP circuit can be seen as the “brain” of
the amplifier. By means of speaker-specific modules,
that are located in 2 front-accessible slots,
the characteristics of the connected speaker are
loaded into the amplifier. With this, the amplifier
is “tailor-made” to the speaker, regardless of the
power output specifications of the amplifier. This
can be done with either the analogue SDP modules,
or the DDP digital drive processor™.
Multiple processing functions are operating at the
same time:
- Protection: The speaker is protected against
damage from over-excursion and power overload.
- Dedicated filtering: The fixed cross-over settings
cater for the best system performance.
- Optimised power response: The SDP module
adjusts the RMS and peak values to the speakers
capacity, giving maximum system power output.
- System equalising: This circuit equalises the
system response, with utilising the maximum
component efficiency. This results in higher overall
system sensitivity and reduces the need for
active filtering while offering efficient amplifier
usage (passive system).
The DDP™ also offers level control, mute and a
user-controllable 4-band parametric equaliser and
(up to) 340ms delay.
By placing the modules in the slots, the SDP circuit
is automatically activated, without the need for
changing switches/jumpers (“plug&play”). Taking
out the modules, bypasses the SDP circuit and converts
the ALC into a “standard” stereo power ampli-
fier, for use with traditional speaker systems. |
| |
|
|
|
| |
|
|
SIS Signal Integrity
Sensing |
 |
 |
  |
 |
 |
 |
| |
|
|
The SIS circuit extends the control-loop of the
amplifier to the input terminals of the speaker, by
means of two additional (sense) wires, compensating
for the influence of speaker cables.
SIS offers cable-length independent damping,
resulting in a virtually infinite damping under all
conditions (up to an almost immeasurable value of
over 10.000).
Furthermore SIS maintains signal level by detecting
the amount of signal loss at the end of the cable.
As a result of pre-compensation of the self-induction
of the cable, non-linear harmonic + intermodulation
distortion are reduced substantially by SIS,
while offering a more linear frequency response
(reduced linear distortion).
SIS offers a significantly tighter and more accurate
low and mid response. Without connection of the 2
extra sense wires, the ALC units can also be used
as any normal amplifier in combination with non-
SIS speaker systems.
|
| |
|
|
|
| |
|
|
ATCM Advanced Thermal
and Clip Management |
 |
 |
  |
 |
 |
 |
| |
|
|
ATCM has a number of sensors within the ampli-
fier, that constantly monitor both operating temperature,
in and output signal. For the temperature
section of ATCM, the input signal stage is regulated
when dangerous temperature increase is sensed;
In this way, the amplifier stays in operation, instead
of switching into “heat protection”.
The clip limiter section reduces the signal input
level to the safest maximum level, when continuous
clipping is detected. In this way the high frequency
drivers are protected against damage from
harmonics and also the amplifier remains cooler.
The limiter has a “Soft-knee clipping characteristic”
for inaudible, but safe operation.
ATCM offers ease-of-operation and guarantees
operation under all conditions. |
| |
|
|
|
| |
|
|
data port |
 |
 |
  |
 |
 |
 |
| |
|
|
The Data port located on the back of the unit, is the
connection for ALC remote-control function.
Through the 15-pin D-connection to remote processor,
function includes indication of operating
status; Temperature per channel, bridge/parallel
mode, AC power level, output power read-out,
impedance check for speaker damage, clip/protect
indication, level control, etc.
For cinema application, the Data-port is completely
compatible with existing D-pin connected cinema
monitors. In that application, the signal in/out connection
also caters for reduced set-up and installation
time and standardised in/output levels. |
| |
|
|
|
| |
|
|
operation |
 |
 |
  |
 |
 |
 |
| |
|
|
The ALC 2 amplifier has in addition a number of
user-friendly features, that make the ALC the ideal
Alcons speaker companion.
All relevant switches (bridge and parallel input) are
conveniently located on the front behind the cover.
When switching to bridge-mode, there is no need
for using different SDP modules. Furthermore, in
bridge-mode, the amp is controlled by only one channel.
The parallel-mode input switch: With this switch,
the input of channel 1 is also send to input channel
2. Therefore there is no need for external “loop
wires” from link output 1 into input 2.
The ALC features PowerCon™ AC power connection,
for quick and efficient exchange of rack
mounted ALC’s.
The ALC2-ST is the “stealth” version of the ALC2.
It has potentiometers that are located behind the
front lid, preventing unwanted changing of gainsettings.
|
| |
|
|
|
| |
|
|
technical specifications |
 |
 |
 |
 |
 |
 |
| |
|
|
| Input sensitivity |
 |
1.4 Vrms(+5.2dBu) for full RMS |
 |
 |
 |
| |
|
power in 4 ohms |
 |
 |
 |
| Max. input level |
|
+21dBu |
 |
 |
 |
| Input impedance |
|
20 kOhm balanced |
 |
 |
 |
| Frequency range |
|
@ 50W into 8 ohms |
 |
 |
 |
| |
|
10 Hz .. 20kHz +0..-0.1dB |
 |
 |
 |
| |
|
10 Hz .. 55kHz.+0..-3dB |
 |
 |
 |
| Gain |
|
32dB (40x) |
 |
 |
 |
| Channel separation |
|
>70 dB @ 1kHz., 50W into 8 ohms |
 |
 |
 |
| |
|
>50 dB @ 20kHz., 50W into 8 ohms |
 |
 |
 |
| Total harmonic
distortion |
|
<0.015% @ 1KHz., 50W
into 8 ohms |
 |
 |
 |
| |
|
<0.2% @ 20kHz., 50W into 8 ohms |
 |
 |
 |
| SMPTE IMD |
|
<0.03% @ 2kHz. - 10kHz. 50W into
8 ohms |
 |
 |
 |
| Signal-to-noise ratio |
|
>108dB A-weighted |
 |
 |
 |
| Slew rate |
|
>40V /uS |
 |
 |
 |
| Damping factor |
|
10.000 @ 1kHz., 8 ohms |
 |
 |
 |
| Output power (RMS/peak) |
|
@ 1 Khz. <0.5% THD |
 |
 |
 |
| |
|
2x 535W / 2x 620W @ 8 ohms |
 |
 |
 |
| |
|
2x 850W / 2x 1000W @ 4 ohms |
 |
 |
 |
| |
|
2x 1120W / 2x 1440W @ 2 ohms |
 |
 |
 |
| Output power bridge mode |
|
@ 1 Khz., <0.5% THD |
 |
 |
 |
| (RMS/peak) |
|
1x 1070W / 1x 1240W @ 16 ohms |
 |
 |
 |
| |
|
1x 1700W / 1x 2000W @ 8 ohms |
 |
 |
 |
| |
|
1x 2240W / 1x 2880W @ 4 ohms |
 |
 |
 |
| Main supply voltage |
|
stated at rear of amplifier |
 |
 |
 |
| Power consumption |
|
75 VA (standby) |
 |
 |
 |
| |
|
1100 VA 1/8 of maximum output |
 |
 |
 |
| |
|
power pinknoise in 2 ohms |
 |
 |
 |
| Weight (approx.) |
|
21kg (46.3lb) |
 |
 |
 |
| Housing |
|
19 inch rackmount, 3 HU, |
 |
 |
 |
| |
|
386 mm/15.2 in. deep behind mounting
surface, |
 |
 |
 |
| |
|
without connectors |
 |
 |
 |
Dimensions
(HxWxD) |
|
132 x 482 x 388 mm /
5.2 x 19 x 15.3 in. |
 |
 |
 |
| |
|
without connectors and rack handles |
 |
 |
 |
| Warranty |
|
3 years |
 |
 |
 |
|
| |
«
