TS3 - Mini monitor

  • 1” soft-dome tweeter + 6.5” woofer
  • 67Hz. – 20.000Hz. (+/- 3dB)
  • SPL program/peak 109dB / 115dB
  • Signal Integrity Sensing™ pre-wired
  • Dispersion H 90° x V 60°
  • Omnimount™ mounting points, bracket (option)

Product description

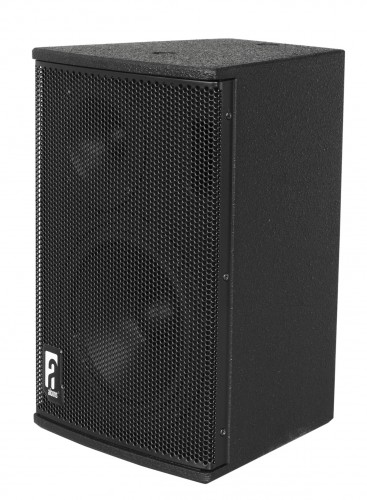

The TS3 is a 2-way ultra-compact versatile loudspeaker, for permanent applications. Featuring a 1” soft-dome tweeter with single 6.5” high quality woofer, the TS3 delivers exceptional performance from a very compact and efficient package. The system includes dedicated filtering and system equalizing.

The SIS pre-wiring ensures complete cable/connector compensation between the TS3 and ALC. The enclosure design provides for low profile mounting (ceiling, wall). Typical applications for the TS3 include background system for medium installations (theatre, A/V, PA) or fill/delay/surround speaker in medium sized systems. In applications where extended bass response is required, the TS3 can be combined with a bass or sub bass system.

For full system performance, TS3 is to be used in combination with an ALC amplified loudspeaker controller. Driven by the ALC, the TS3 delivers maximum sound quality and output power with inaudible (power and excursion) protection.

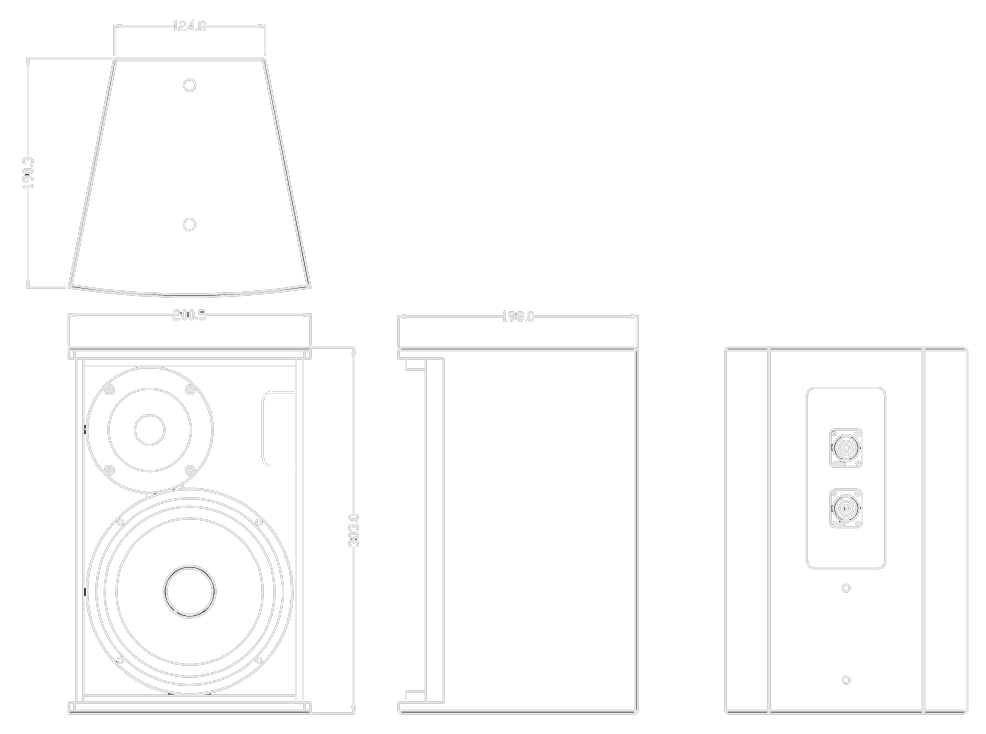

Dimensional drawing

Technical specifications

Frequency response   67 Hz - 20.000 Hz (+/- 3 dB)
47 Hz - (+/- 10 dB)
Sensitivity (SPL 1W/M)   89 dB
Nominal impedance   16 ohms
Maximum RMS power   100 Watt
Maximum peak power   400 Watt
SPL program/peak   109/115 dB
Dispersion H x V   90° x 60°
Polarity   positive voltage on
terminal 1+ of Speakon
gives forward cone motion

Physical specifications

System   2-way, full range
Filtering   passive
Drivers LF   1 x AMB65 6,5”,
Drivers HF   1 x AST1” soft-dome tweeter
Cross-over frequency   3000 Hz.

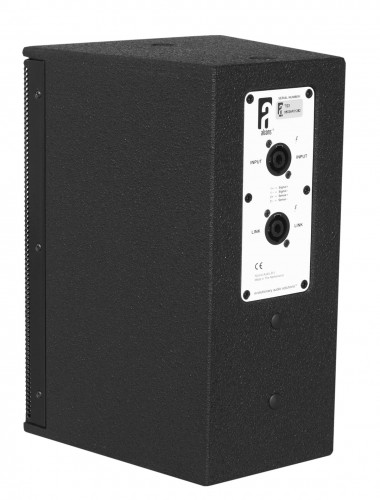

Connectors   2 x Speakon NL4 input
Physical dimensions   mm        inches
Height   303        11,9
Width   200,5      7,9
Depth   198         7,8
Netto Weight (approx.)   4,6 kg     10,1 lb
Warranty   6 years limited
