QM18

QM18 - Modular line-source LMF array extension

  • Modular scalable low-mid array system, with multiple units flown or stacked above each other
  • Neodymium drivers for excellent performance-to-weight ratio
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Passive filtering for easy operation and economical powering
  • Durotect™ scratch-resistant coating

Product description

The QM18 is a modular, limited bandwidth loudspeaker to be used as vertical low-mid array, either in stacked or flown configuration, for both permanent and (limited) portable installations. It is designed as low-mid extension of a QR-array.

The QM18 “array in-fill” module is applied in a multiple QR-array, where the direct HF reproduction/projection of a QR is not required, but where an uninterrupted LMF line-source array is desirable for extended frequency control. The tightly spaced mid-bass transducers are fully compliant with the laws of line-array behaviour. The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the QM18 and ALC. In this way, the ALC can be loaded down to 2 ohms, without any sacrifice on response quality (4 units QM18 parallel on one channel loads 3 ohms).

Typical applications for the QM-systems include “array in-fill” to a QR main system for theatre, PA system in “acoustically challenging rooms”, as well as high power side-fill stage monitoring.

For full system performance, the QM18 needs to be driven by an ALC amplified loudspeaker controller. Driven by the ALC, the QM18 delivers maximum sound quality with inaudible (power and excursion) protection.

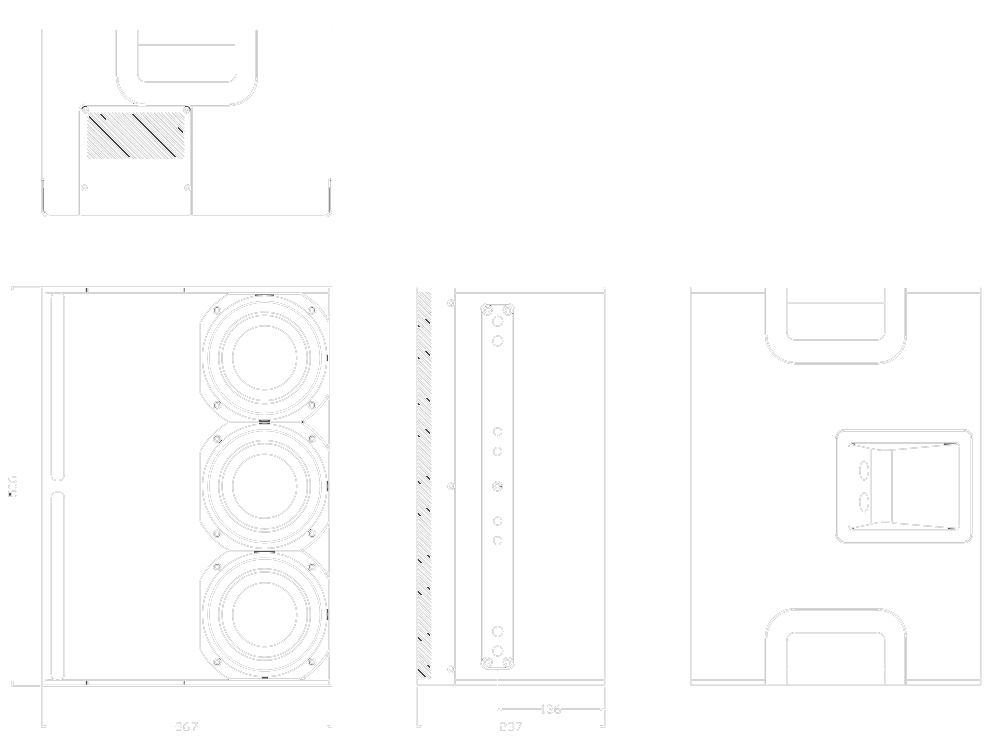

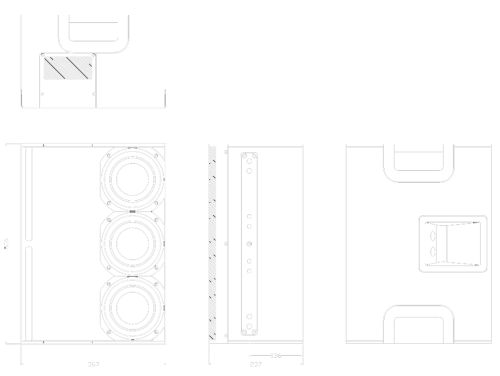

Dimensional drawing

Technical specifications

Frequency Response
+/- 3 dB   74 Hz - 20.000 Hz
+/- 10 dB   53 Hz -
Sensitivity (SPL 1W/M)   97 dB
Nominal Impedance   12 ohms
Maximum RMS power (AES)   390 W
Maximum peak power (AES)   1500 W
SPL program (nom.)   123 dB
SPL peak (nom.)   129 dB
Dispersion H x V   90° x array length dep.

Physical specifications

System   limited bandwidth
Filtering   passive
Drivers LF   3 x AND65/4 neodymium
6.5", vented
Cross-over frequency   1000 Hz.
Connectors   2 x Speakon NL4 input/link
Physical dimensions   mm              inches
Height   506              19.9
Width   367              14.4
Depth   237              9.3
Weight (approx.)   14 kg            (31 lb)
Warranty   6 years limited
