  technical specifications LR16B


The LR14 and the LR16 are the main components of The Ribbon line-array systems. For more information on the line-arrays and The Ribbon Network, click here

      general



  • Double-tuned band-pass design with high
    efficiency
  • Neodymium 15” drivers for excellent performance-to-weight ratio
  • 15mm Birch with clever bracing brings lightweight yet rigid cabinet construction
  • High WLL flying system
  • Stackable and flyable with LR16 or in separate arrays
  • SIS pre-wired for very high damping and further reduced distortion (with ALC)
  • Dedicated protection in combination with SDP modules (with ALC)
  • Durotect™ scratch-resistant coating





      description

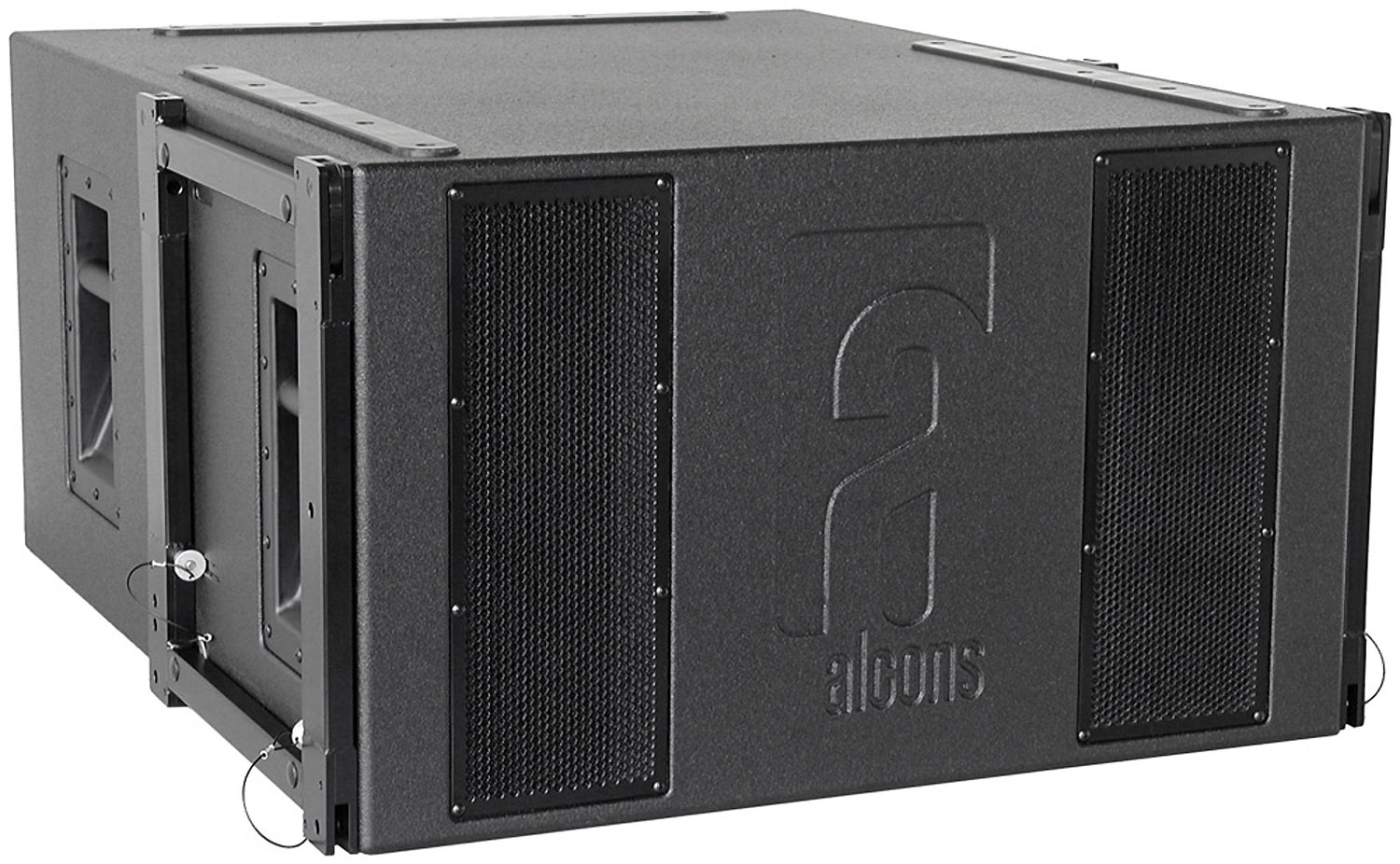

  The LR16Bass is a double-tuned band-pass bass system, for both permanent and portable applications. Featuring double 15” long excursion woofers with Neodymium magnet structures, the LR16Bass delivers high quality, high output bass response from a compact and weight efficient package. The special band-pass configuration offers LR16-matched bass response in full-space (flown) and increased efficiency in half-space (stacked) applications. The easy and accurate flying system, makes the system quick to set-up in combination with the LR16 line-array module.

The SIS pre-wiring ensures complete cable/connector compensation between the LR16Bass and ALC. The LR16Bass is designed as high-efficient bass extension of the LR16, used in multiples depending on the array-length and low frequency requirements.

For full system performance, we recommend using the LR16Bass in combination with an ALC2 or ALC4 amplifier/controller. Driven by the ALC, the LR16Bass delivers maximum sound quality and output power with dedicated and inaudible (power and excursion!) protection (SDP circuit).


  technical specifications   physical specifications

Frequency Response
+/- 3 dB   46 Hz-200 Hz
+/- 10 dB   37 Hz -
Sensitivity (SPL 1W/M)   102 dB
Nominal Impedance   4 Ohm
Maximum RMS power   1000 Watt
Maximum peak power   3200 Watt
SPL program/peak   132/137 dB
Dispersion H x V   omni


System subwoofer, band-pass
Drivers LF   2 x AW15.3ND 15”, double
    vented
Cross-over frequency HP   40 Hz. recommended
Connectors   2 x Speakon NL4 input
Physical dimensions   mm              inches
Height   440              17,3
Width   772              30,4
Depth   900              35,4
Weight (approx.)   53,3 kg         (117,3 lb)
Warranty   6 years limited
